ITEM NO:SCE 3030

·Microprocessor Control (CPU)

·Low-loss serial controller

·PWM-controlled constant-voltage charging

·Battery charging with automatic charging mode selection (float,boost, equal)

·Automatically adjusts to the voltage level 12 V/24 V

·Current-dependent load deactivation

·Automatic load reactivation

·Temperature compensation

·Grounding on the plus side

·Integrated self test (start voltage 17.0 V)

·LEDs to display the battery charge status

·LEDs (red/green)to display the function status

·Maxmodule input short circuit current at 50℃: 30A

·Maxload output current at 50℃: 30A

·Systemvoltage: 12 V / 24 V

·Maxvoltage of Solar collector: 47 V DC

·Boost charging: 14.4V / 28.8V

·Equalisation charging : 14.7V /29.4V

·End-of-chargevoltage(float): 13.9V / 27.8V

·Enclosureprotection class: IP 32

·Temperaturecompensation: -4 mV / K / Zelle

·Ambienttemperature allowed: -25℃…+50℃

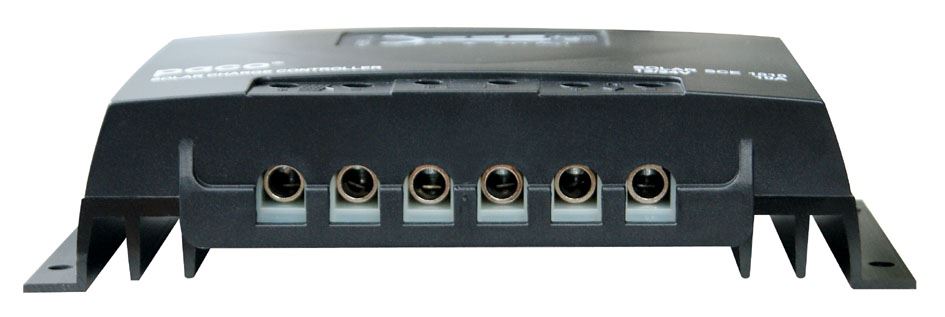

·Terminalsize(fine/single wire): 16/25mm2=4/6 AWB

·Dimensions(L×W×H): 177x 96 x 43 mm

·Compliant standards: CE, EN61000
