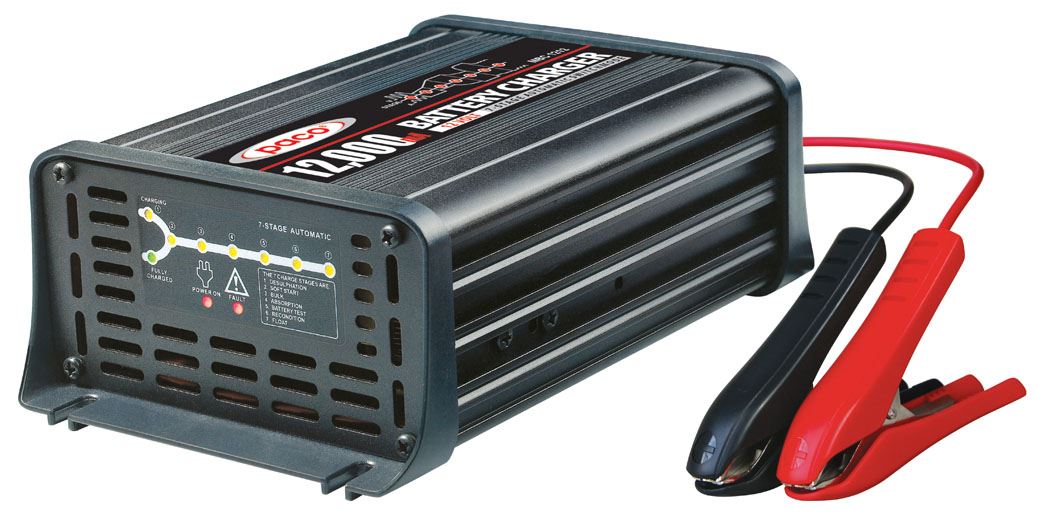

Automatic 12V 20A 7 Stage Battery Charger

MBC1220

MBC 1220 provides efficient and rapid chargingprocess, ideal for minivans, recreational vehicles and boats battery charging.

Product Files

Product Describe

ITEM NO:MBC 1220

Microprocessor Control (CPU).

7-STAGE AUTOMATIC CHARGING.

This is a fully automatic battery charger with 7 charge stages.

Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.

7-stage charging is a very comprehensive and accurate charging process that gives your battery longer life and better performance compared to using traditional chargers.

7-stage chargers are suitable for most battery types including Calcium, Gel and AGM batteries. They may also help restore drained and sulphated batteries.

Types of batteries: Most types of lead acid batteries including Calcium, GEL and AGM.

Switchmode technology: Yes

Polarity protection: Yes

Output short protection: Yes

Non battery link protection: Yes

Over voltage protection: Yes

Over temperature protection: Yes

Cooling fan: Automatic temperature controlled.

Input voltage: 220-240V AC, 50/60Hz / 110V AC, 50/60Hz.

Input power: 554W

Rated output: 12V DC, 20,000mA

Minimum start voltage: 2.0V

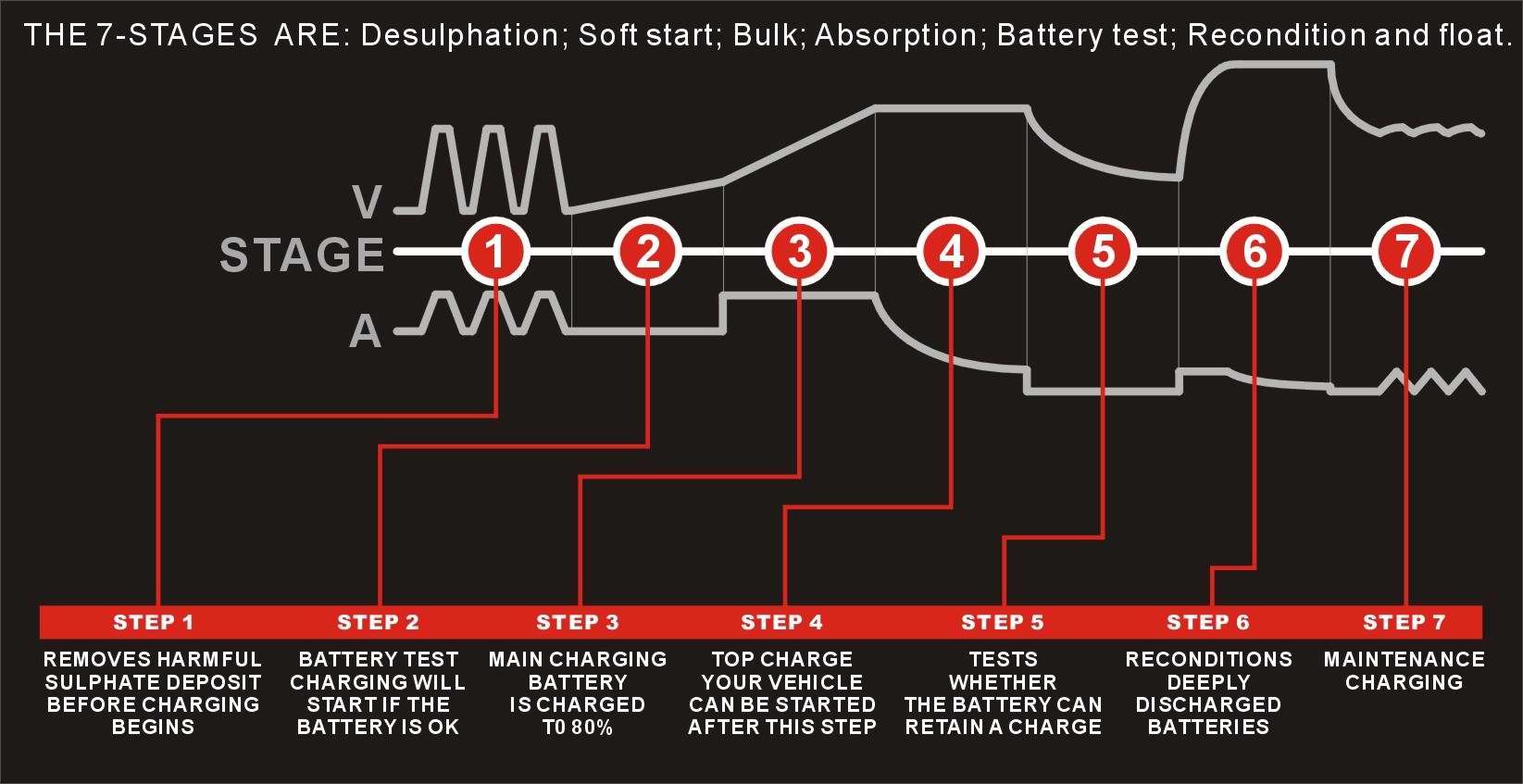

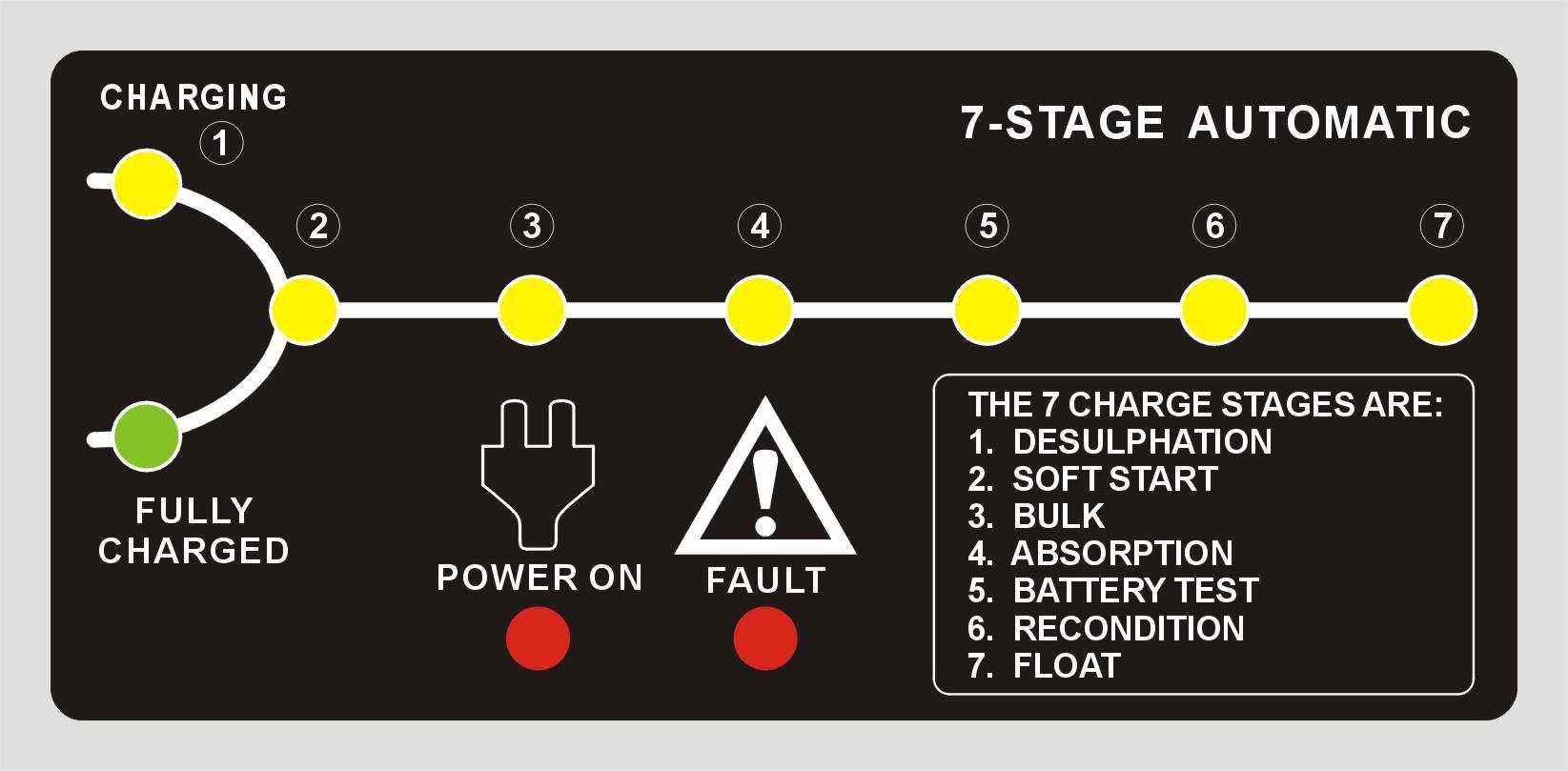

The 7 stages are: Desulphation ; Soft Start; Bulk; Absorption; Battery Test; Recondition and Float.

Battery range: 134-400Ah

Thermal protect (fan on): 65℃+/-5℃.

Cooling fan: Automatic temperature controlled.

Efficiency: App. 85%.

Compliant standards: CB,CE, IEC60335, EN61000, EN55014

Dimension (L×W×H): 215×115×62mm

Weight: 1.3kg
