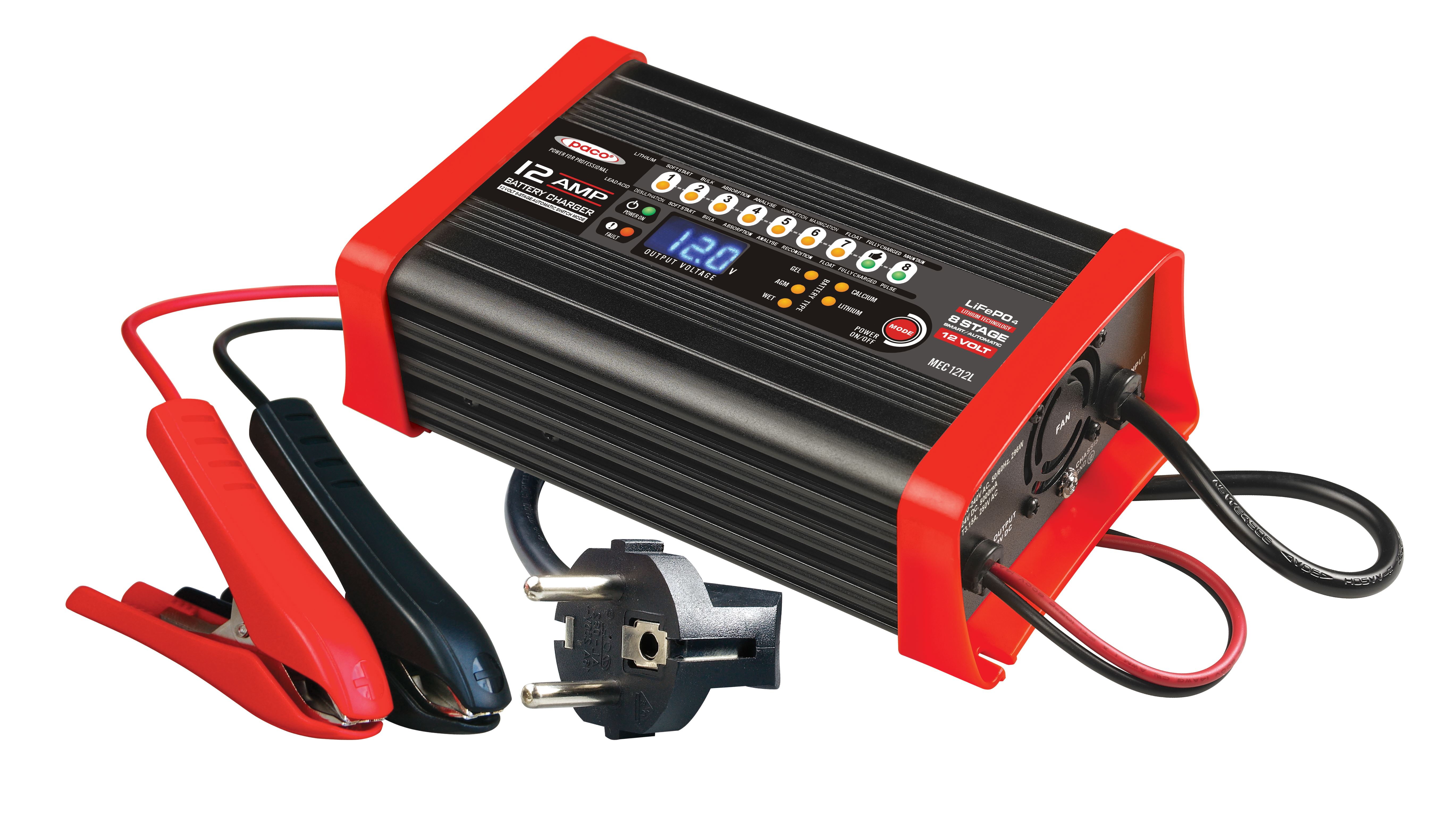

MEC1220L
MEC 1220L provides efficient and rapid charging process, ideal for minivans, recreational vehicles and boats battery charging.
ITEM NO:MEC 1220L
• Microprocessor Control (CPU).
• 8-STAGE AUTOMATIC CHARGING.
• This is a fully automatic battery charger with 8 charge stages.
• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
• 8-stage charging is a very comprehensive and accurate charging process that gives your battery longer life and better performance compared to using traditional chargers.
• 8-stage chargers are suitable for most battery types including LITHIUM, GEL, AGM, WET, MF and CALCIUM batteries. They may also help restore drained and sulphated batteries.

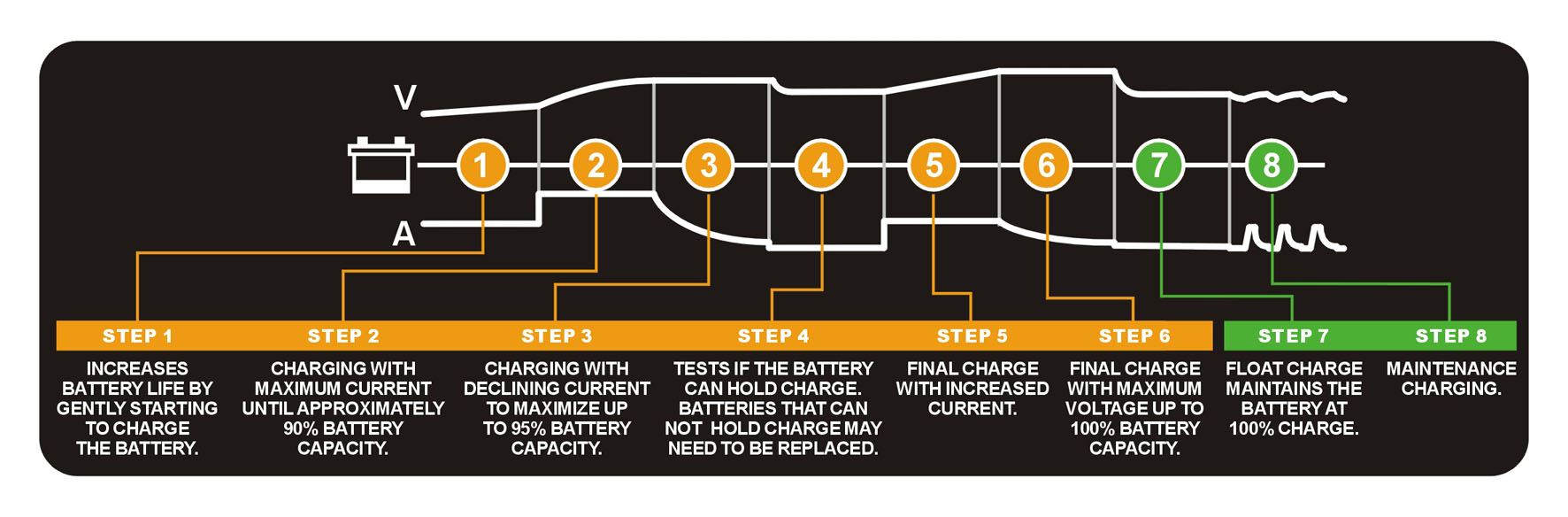

• The Lithium battery mode 8 stages are: Soft Start、Bulk、Absorption、Analyse、Completion、Maximization、Float and Maintain.

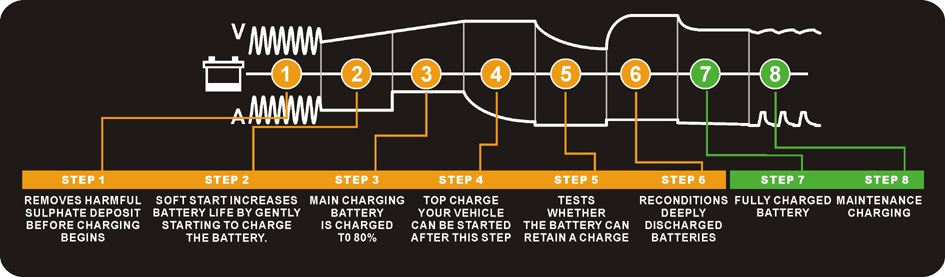

• The Lead Acid battery mode 8 stages are: Desulphation、Soft Start、Bulk、Absorption、Analyse、Recondition、Float and Pulse.
• Switchmode technology: Yes
• Polarity protection: Yes
• Output short protection: Yes
• Non battery link protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Disconnect protection: Yes
• Cooling fan: Automatic temperature controlled.
• Input voltage: 220-240V AC, 50/60Hz / 110V AC, 50/60Hz.
• Input power: 554W
• Rated output: 12V DC, 20A
• Back Drain: 4mA
• Minimum start voltage: 2.0V
• Battery range: 134-400Ah
• Thermal protect (fan on): 65℃+/-5℃.
• Cooling fan: Automatic temperature controlled.
• Efficiency: App. 85%.
• Compliant standards: CB,CE, IEC60335, EN61000, EN55014
• Dimension (L×W×H): 217×116×62mm
• Weight: 1.28kg
