ITEM NO:MFC 1220L

• Microprocessor Control (CPU).

• 8-STAGE AUTOMATIC CHARGING.

• This is a fully automatic battery charger with 8 charge stages.

• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.

• 8-stage charging is a very comprehensive and accurate charging process that gives your battery longer life and better performance compared to using traditional chargers.

• 8-stage chargers are suitable for most battery types including LITHIUM, GEL, AGM, WET, MF and CALCIUM batteries. They may also help restore drained and sulphated batteries.

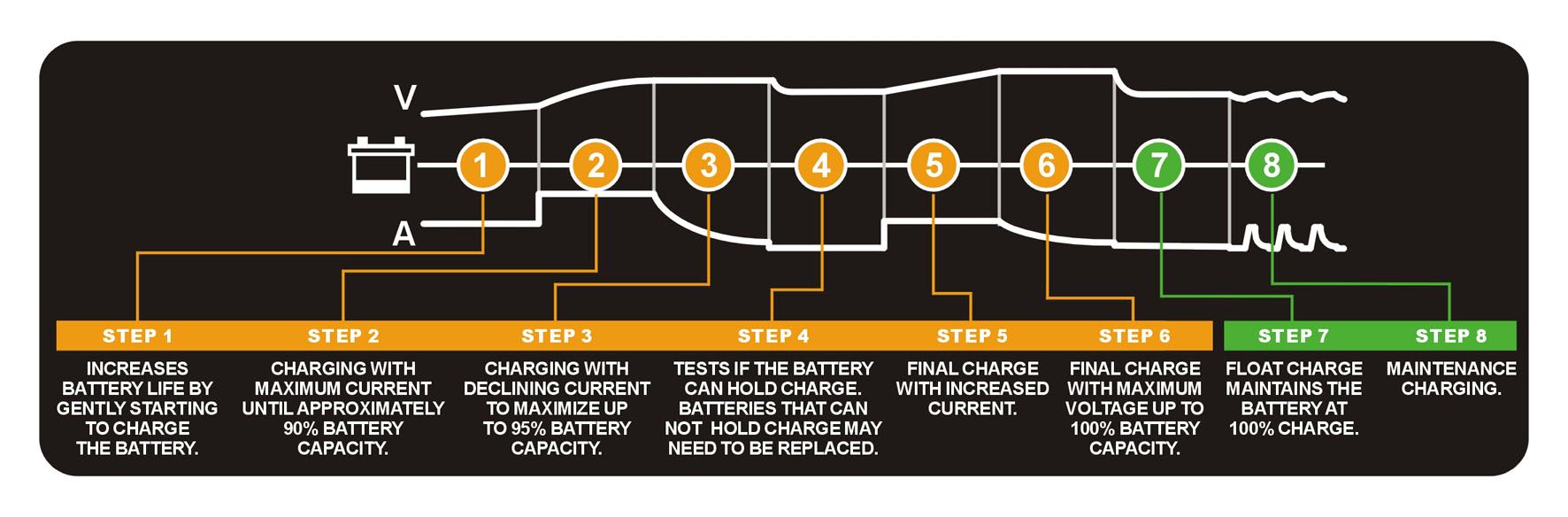

• The Lithium battery mode 8 stages are: Soft Start、Bulk、Absorption、Analyse、Completion、Maximization、Float and Maintain.

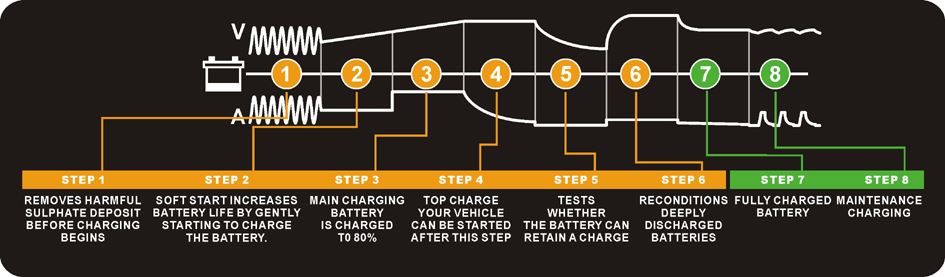

 • The Lead Acid battery mode 8 stages are: Desulphation、Soft Start、Bulk、Absorption、Analyse、Recondition、Float and Pulse.

• Switchmode technology: Yes

• Polarity protection: Yes

• Output short protection: Yes

• Non battery link protection: Yes

• Over voltage protection: Yes

• Over temperature protection: Yes

• Disconnect protection: Yes

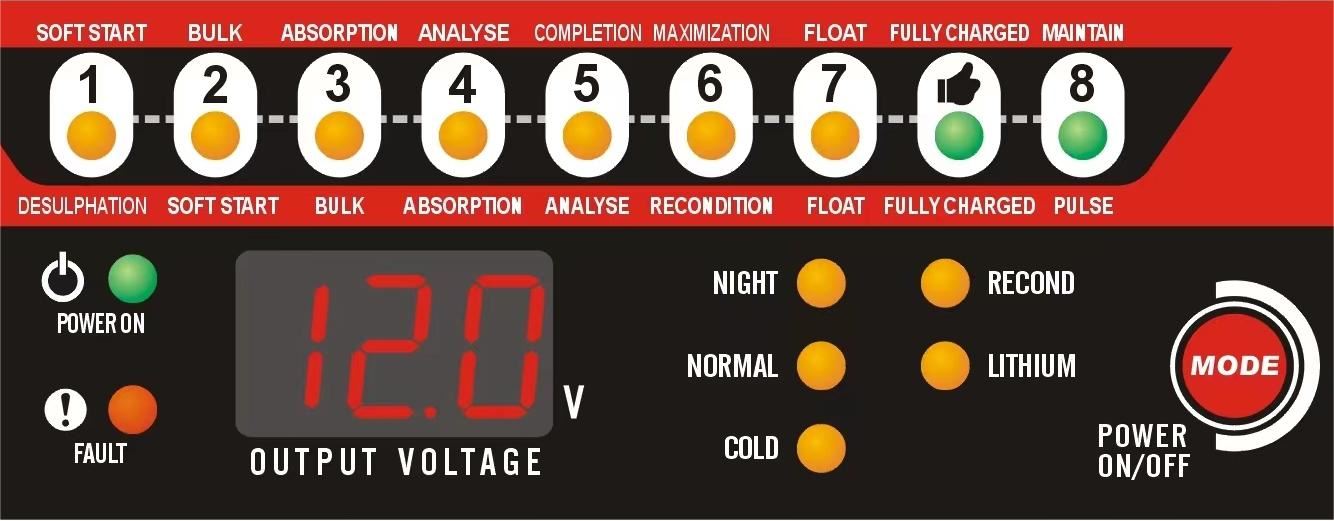

• Night charging mode.

• Cooling fan: Automatic temperature controlled.

• Input voltage: 220-240V AC, 50/60Hz / 110V AC, 50/60Hz.

• Input power: 554W

• Rated output: 12V DC, 20A

• Back Drain: 4mA

• Minimum start voltage: 2.0V

• Battery range: 134-400Ah

• Thermal protect (fan on): 65℃+/-5℃.

• Cooling fan: Automatic temperature controlled.

• Efficiency: App. 85%.

• Compliant standards: CB,CE, IEC60335, EN61000, EN55014

• Dimension (L×W×H): 217×116×62mm

• Weight: 1.28kg
