SCG0606

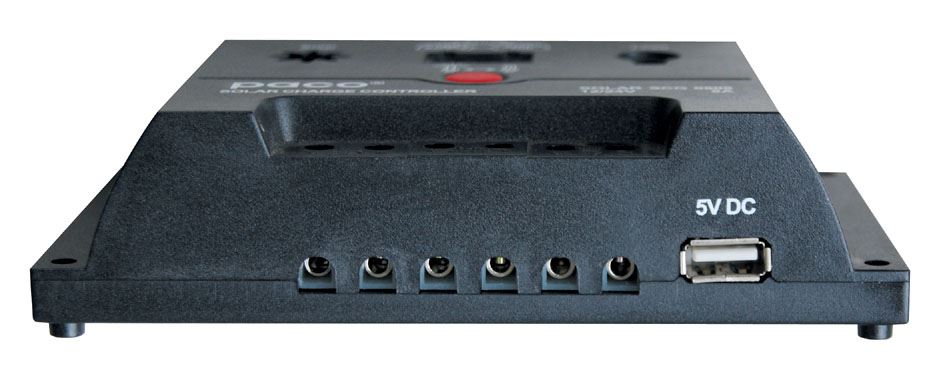

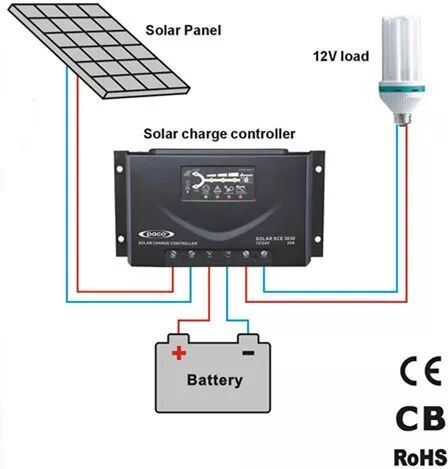

SCG 0606 added a USB port and load switch button. Controls the power from the solarpanels up to 6Aenergy into your battery, providing a perfect 3 stage charging mode.
ITEM NO: SCG0606
·Microprocessor Control (CPU)
·Low-loss serial controller
·PWM-controlled constant-voltage charging
·Battery charging with automatic charging mode selection (float,boost, equal)
·Automatically adjusts to the voltage level 12 V/24 V
·Current-dependent load deactivation
·Automatic load reactivation
·Temperature compensation
·Grounding on the plus side
·Integrated self test (start voltage 17.0 V)
·LEDs to display the battery charge status
·LEDs (red/green)to display the function status
·Maxmodule input short circuit current at 25℃: 6A
·Maxload output current at 25℃: 6A
·Systemvoltage: 12 V / 24 V
·Maxvoltage of Solar collector: 47 V DC
·USBoutput voltage (continuous): 5.0V DC,800mA
·Boostcharging: 14.4V / 28.8V
·Equalisationcharging : 14.7V / 29.4V
·End-of-chargevoltage(float): 13.9V / 27.8V
·Enclosureprotection class: IP 32
·Temperaturecompensation: -4 mV / K / Zelle
·Ambienttemperature allowed: -25℃…+50℃
·Terminalsize(fine/single wire): 2.5 mm2/4 mm 2
·Dimensions(L×W×H): 145x90X39mm
·Compliant standards: CE, EN61000
