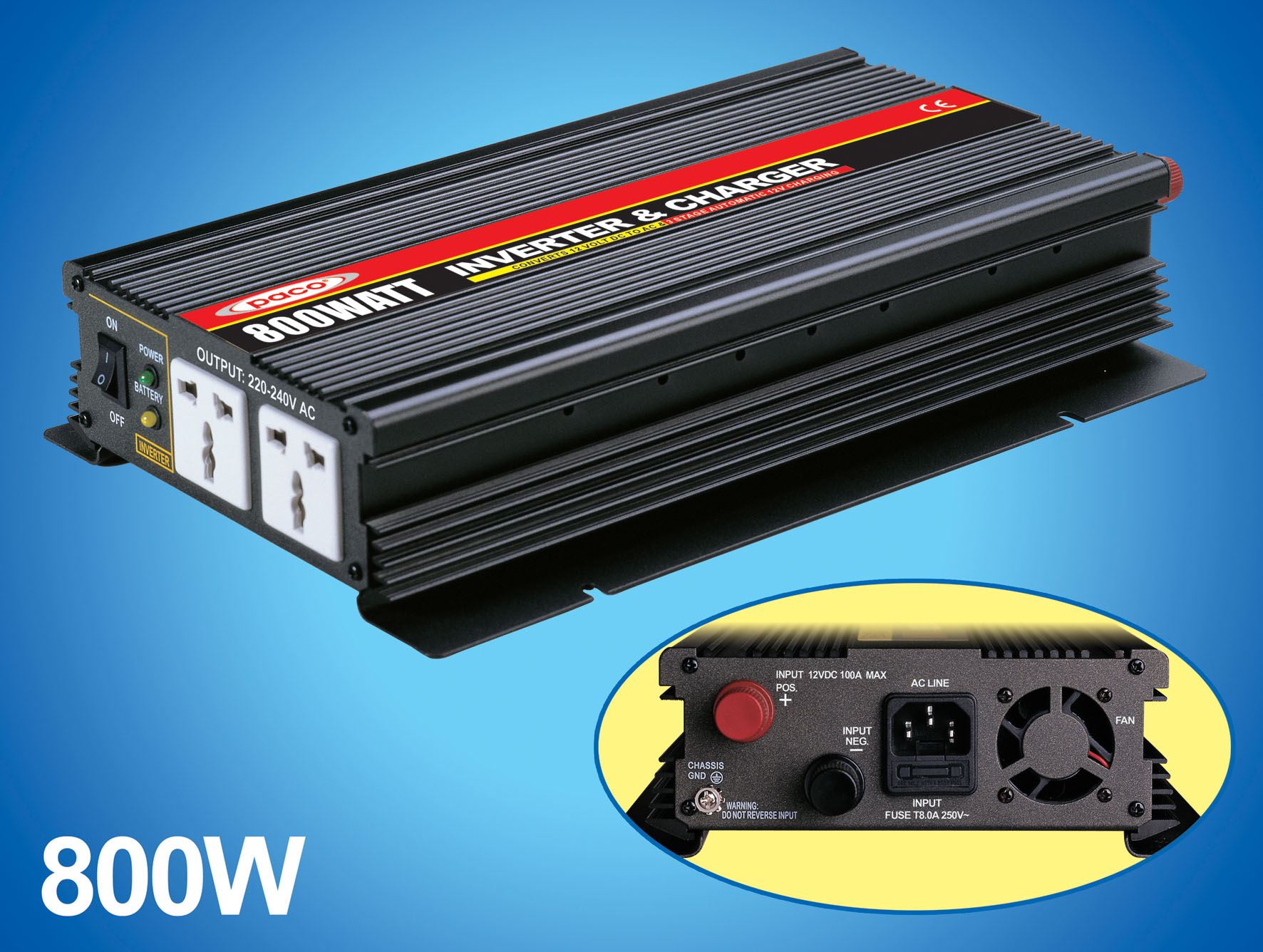

ITEM NO:  PIC800-1205

• For use in car, boats, trucks, trailers and mobile homes.
• Take the power inverter to portable and get power to run lamps, radios or TVs.
• In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances.
• The inverter can automatically detect low battery voltage and shut down to preserve the battery
• Overload protection: Yes
• Output short: Yes
• Battery protection reverse: Yes
• Short circuit protection and no spark clamps
• Thermal and current overload protection
• Automatic switch / Transfer time: AC line to inverter, inverter to AC line, transfer 10ms.
• Compliant standards: CB, CE, E13, IEC60950, EN61000

INVERTER:

• DC input voltage: 12V DC, 73A, (10-15V)
• Input standby current (12V DC,+/-5%): ≤0.6A
• AC output voltage: 230V AC / 110V AC, +/-8%
• Output power: 800W, 3.5A
• Output power (peak watts): 1800W
• Output frequency: 50 or 60Hz
• Output waveform: Modified sine wave
• Low-battery voltage alarm: 10.5V DC,+/-0.5V
• Low-battery voltage shutdown: 10.0V DC, +/-0.5V
• Fuse quantity & size: 25A×4 , Standard auto blade fuse (Internal*)
• Efficiency: 85 to 90%
• Thermal shutdown: 65℃+/-5℃
• Cooling fan: Yes auto-operation fan (temperature or load)

CHARGER:

• Rated input voltage: 230V AC, (160-270V), 50Hz / 110V AC, (80-130V), 60Hz.
• Input power: 0.85A
• Rated output: 12V DC, 5000mA
• Minimum start voltage: 4.5V
• Current fuse rating: 250V AC, F3.15A, (Internal*), T10A, (External), 5×20mm.
• Type: 3 Stage automatic
• Charge control: Bulk 5000mA (up to 14.7V), Absorption 14.4V, Float 13.8V.
• Battery range: 75-250Ah
• Battery Type: For charging 12V lead acid batteries only.
• Thermal protect (fan on): 65℃+/-5℃.
• Performance: Micro-processing switching mode.
• Efficiency: App. 85%.
• Machine size(mm): 360×212×67
• N.W.(Kgs): 3Kg
