ITEM NO:  IV175-24

• For use in car, boats, trucks, trailers and mobile homes.
• Take the power inverter to portable and get power to run lamps, radios or TVs.

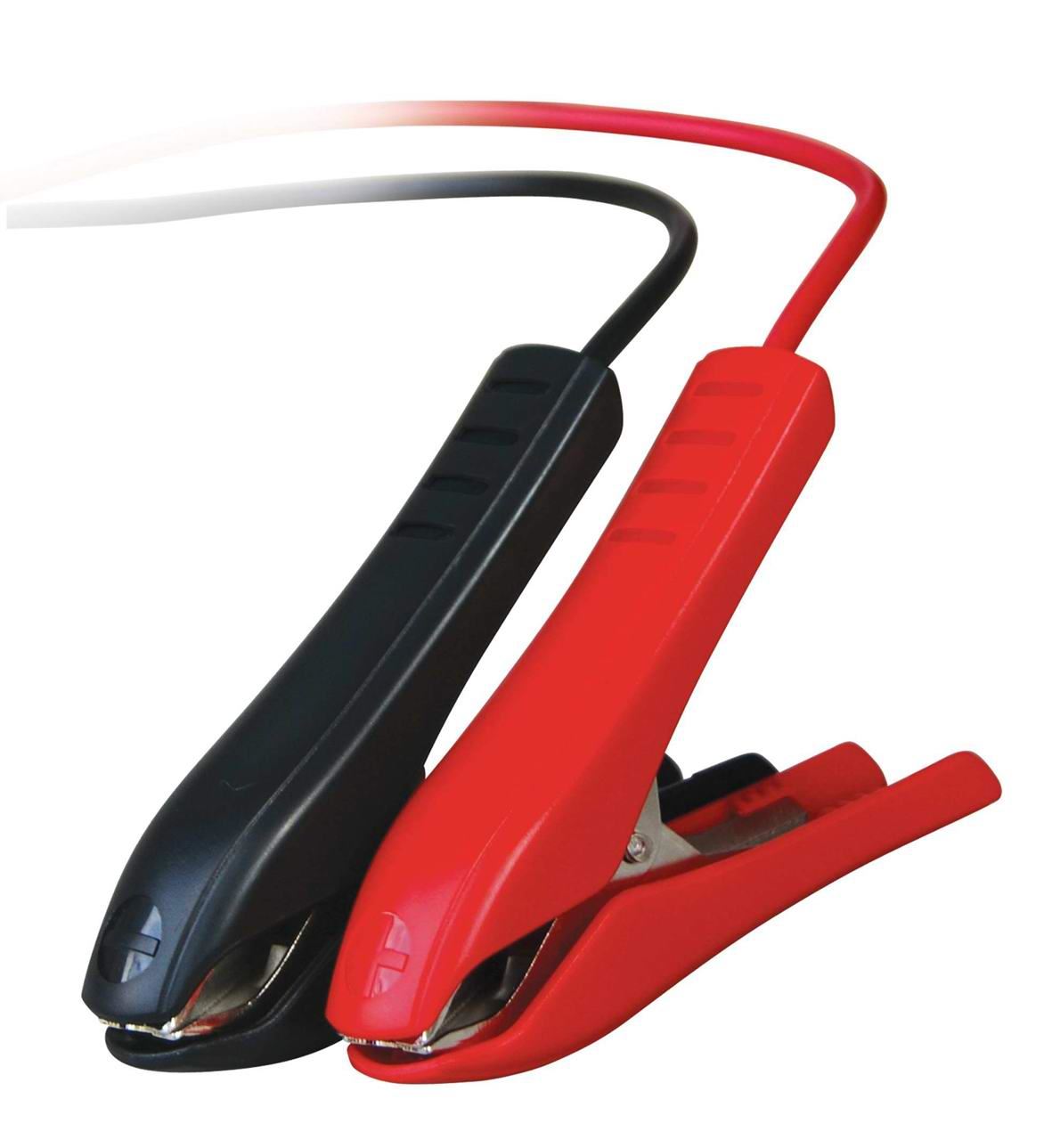

• In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances.
• Ultra-Compact Metal Housing: Small and rugged: stored easily in any tool box, briefcase or glove compartment.
• Integrated Fuse Protection: Protects your battery and power inverter from damage due to outlet overload.
• The inverter can automatically detect low battery voltage and shut down to preserve the battery
• Overload protection: shutdown and alarm (integrated fuse protection, protects the battery, and power inverter from damage due to outlet overload)
• Output short: Output short circuit protection.
• Compliant standards: CB, CE, IEC60950, EN61000, 2006/28/EC
• Battery protection reverse: By fuse.
• DC input voltage: 24V DC, 8.0A, (20-30V)
• Input standby current (24V DC,+/-5%): ≤0.13A
• AC output voltage: 230V AC / 110V AC, +/-8%
• Output power:    175W, 0.76A
• Output power (peak watts): 350W
• USB output voltage: 5.0V DC, 500mA
• Output frequency: 50 or 60Hz
• Output waveform: Modified sine wave
• Low-battery voltage alarm:    21.0V DC,+/-0.5V
• Low-battery voltage shutdown: 20.0V DC, +/-0.5V

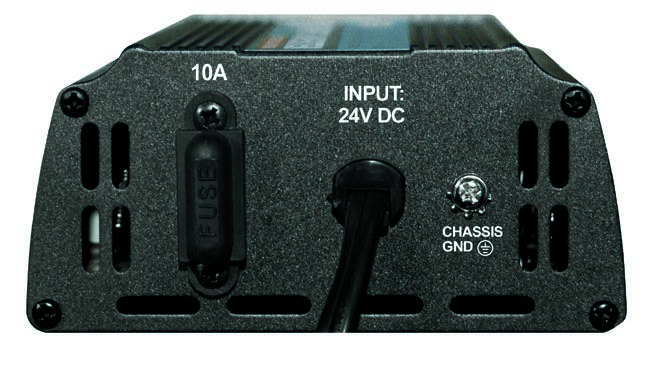

• Fuse quantity & size: 10A , Standard auto blade fuse (External)
• Efficiency: 85 to 90%
• Thermal shutdown: 65℃+/-5℃
• Cooling fan: Yes
• Operating temperature: 0~40℃
• Storage temperature:: -15℃~45℃
• Operating relative humidity: 10%RH~102%RH,
• Machine size(mm): 150×108×51
• N.W.(Kgs): 0.7Kg
