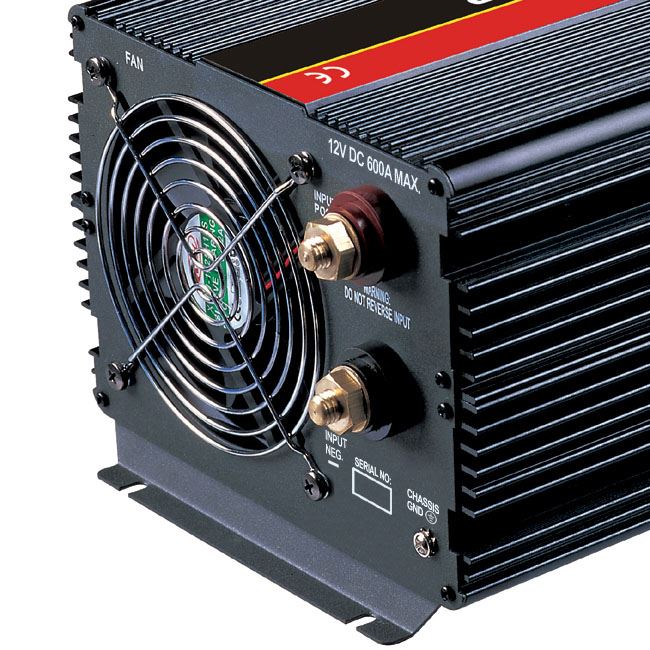

ITEM NO: PI-5000W

• For use in car, boats, trucks, trailers and mobile homes.
• Take the power inverter to portable and get power to run lamps, radios or TVs.
• In an emergency such as blackout, attach the power inverter to your car battery or portable battery and get power to run your appliances.
• Ultra-Compact Metal Housing: Small and rugged: stored easily in any tool box, briefcase or glove compartment.
• Integrated Fuse Protection: Protects your battery and power inverter from damage due to outlet overload.
• The inverter can automatically detect low battery voltage and shut down to preserve the battery
• Overload protection: shutdown and alarm (integrated fuse protection, protects the battery, and power inverter from damage due to outlet overload)
• Output short: Output short circuit protection.
• Compliant standards: CE, EN60950, EN61000
• Battery protection reverse: By fuse.
• DC input voltage: 12V DC, 458A, (10-15V)
• Input standby current (12V DC,+/-5%): ≤0.8A
• AC output voltage: 230V AC / 110V AC, +/-8%
• Output power:    5000W, 21.7A
• Output power (peak watts): 10,000W
• Output frequency: 50 or 60Hz
• Output waveform: Modified sine wave
• Low-battery voltage alarm:    10.5V DC,+/-0.5V
• Low-battery voltage shutdown: 10.0V DC, +/-0.5V
• Fuse quantity & size: 25A×30, Standard auto blade fuse (Internal*)
• Efficiency: 85 to 90%
• Thermal shutdown: 65℃+/-5℃
• Cooling fan: Yes auto-operation fan (temperature or load)
• Connection cable: 70.0mm2 / 1100mm.
• Operating temperature: 0~40℃
• Storage temperature: -15℃~45℃
• Operating relative humidity: 10%RH~102%RH,
• Machine size(mm): 460×210×155
• N.W.(Kgs): 8.7Kg
