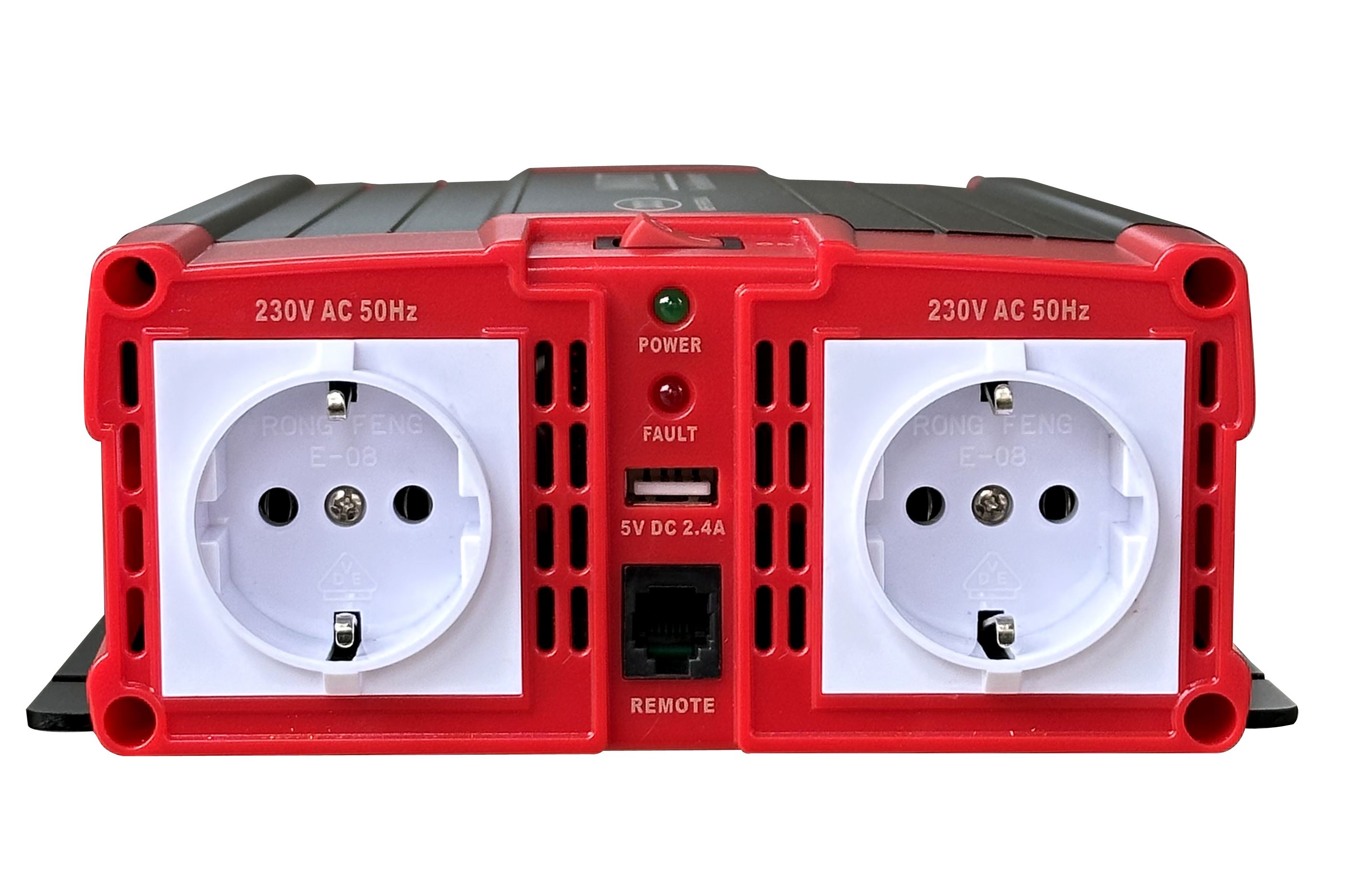

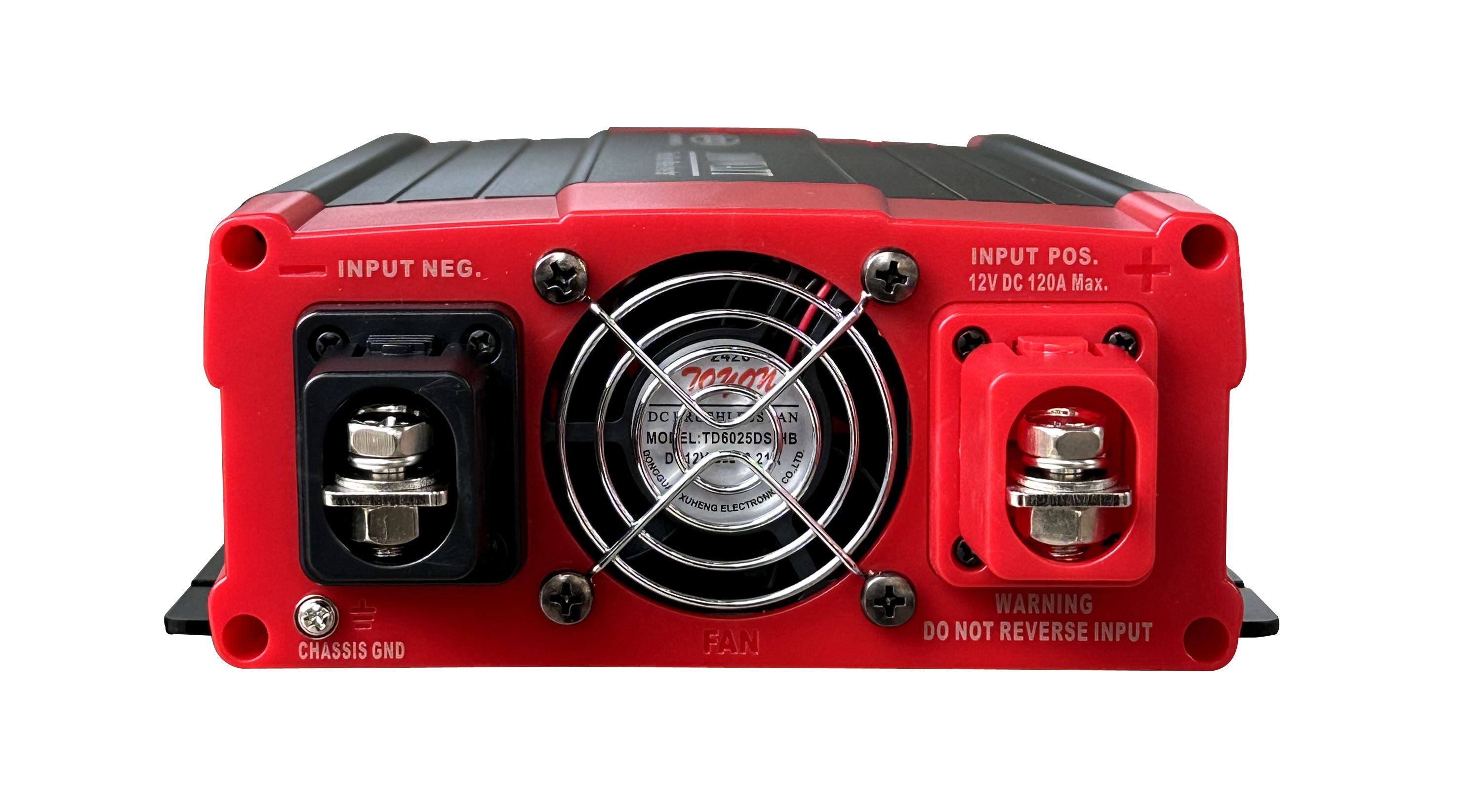

ITEM NO: PSI1000-12

With PSI1000-12 Inverter you can run your power tools, laptops and TV’s. Using a Pure Sine Wave output, the inverter will ensure appliances run smoothly and efficiently, producing less heat and noise. Ultra-compact metal housing is lightweight, rugged and easily stores in any tool box or glove box.

The PSI1000-12 inverter features multiple levels of protection:

• Integrated Fuse Protection: Protects your battery and inverter from damage due to outlet overload

• The inverter can automatically detect low battery voltage and shut down to preserve the battery

• Overload protection: shutdown and alarm (integrated fuse protection, protects the battery, and inverter from damage due to outlet overload)

• Output short: Output short circuit protection

• Battery protection reverse: By fuse

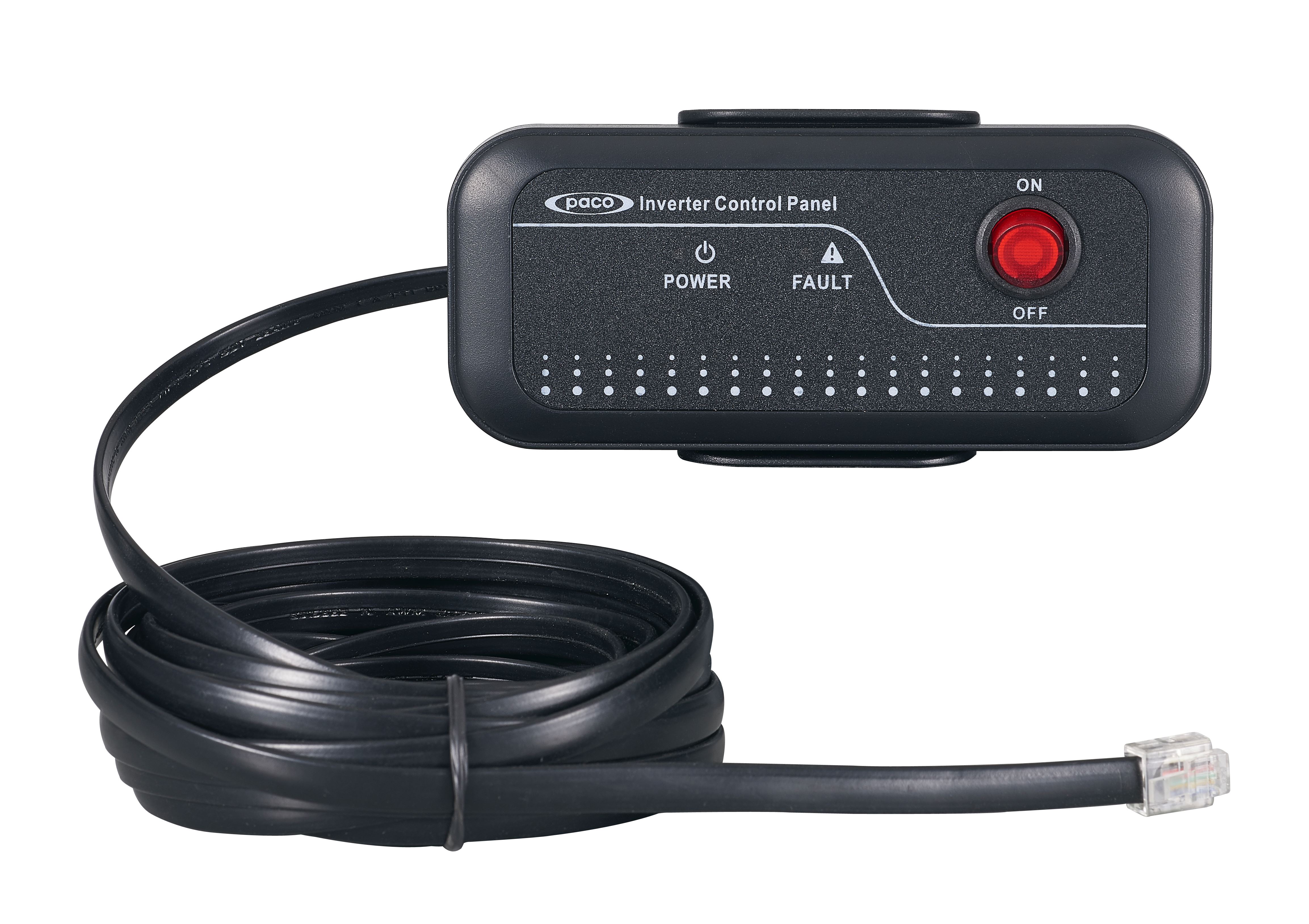

In addition, PSI1000-12 has an optional Remote on/off switch (REMOTE CONTROL PANEL), that allows the control of the inverter from a distance. Gives the user the opportunity to turn the inverter on/off from a distance. Simply connect the cable to the REMOTE port on the front of the Pure Sine Wave Inverter.

         FEATURES:

• DC input voltage: 12V DC, 120A, (10-15V)

• Input standby current (12V DC,+/-5%): ≤1.2A

• AC output voltage: 230V AC / 115V AC, +/-8%

• Output power: 1000W

• Output power (peak watts): 2000W

• USB Output Voltage: 5.0V DC, 2.4A

• Output frequency: 50 or 60Hz

• Output waveform: Pure Sine Wave

• Low-battery voltage alarm: 10.5V DC,+/-0.5V

• Low-battery voltage shutdown: 10.0V DC, +/-0.5V

• Fuse quantity & size: 35A×4 , Standard auto blade fuse (External)

• Efficiency: 85 to 90%

• Thermal shutdown: 65℃+/-5℃

• Cooling fan: Yes

• Operating temperature: 0~40℃

• Storage temperature: -15℃~45℃

• Operating relative humidity: 10%RH~102%RH

• Machine size(mm): 316×190×78

• N.W.(Kgs): 2.14Kg
