25 Amp, 9-32V, 4-Stages Automatic Dual Battery Charger

DSC1225

DC to DC Battery Chargers can charge from either an alternatorlinked to a battery or via built-in solar regulator with MPPT. Superior 4-Stage charging process to prolong battery life and keeps your batteries healthy andreliable. Ideal for 12V Caravan, Camping and 4WD market.

Product Files

Product Describe

ITEM NO: DSC1225

• SOLAR MPPT

• 25A SOLARMPPT CONTROLLER

• DUAL INPUT OPERATION

• VSR/SMART ALTERNATOR

• DUAL BATTERYMANAGER

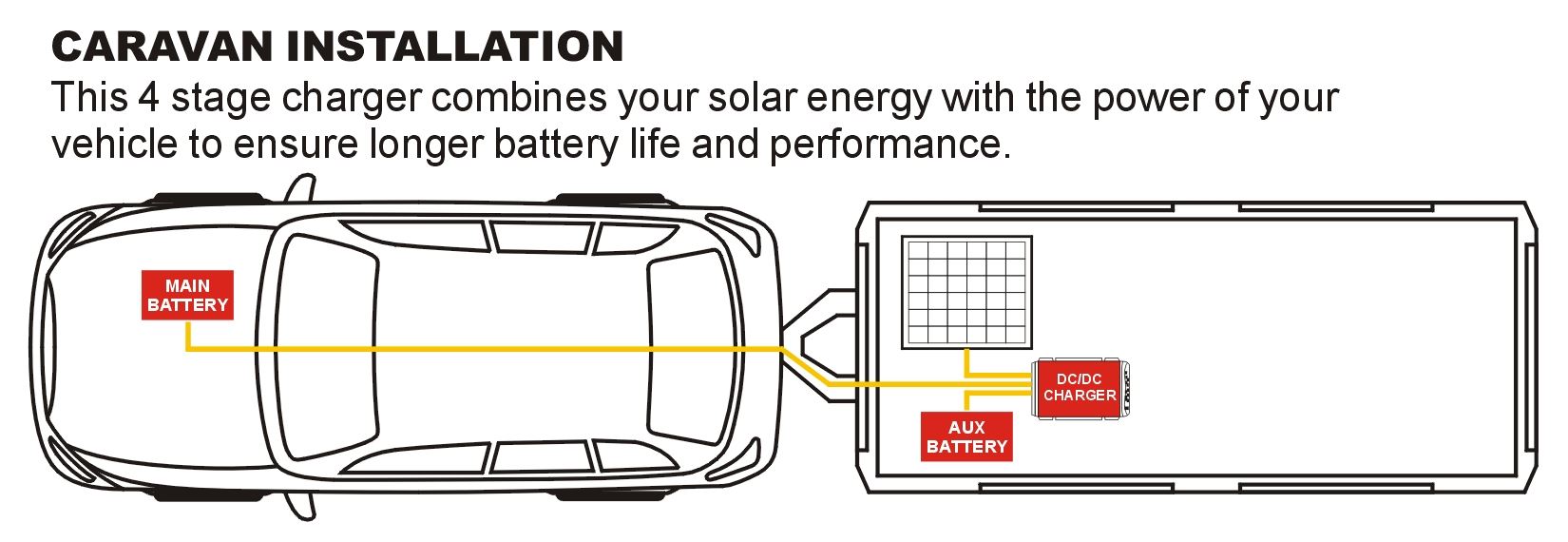

• CARAVAN INSTALLATION

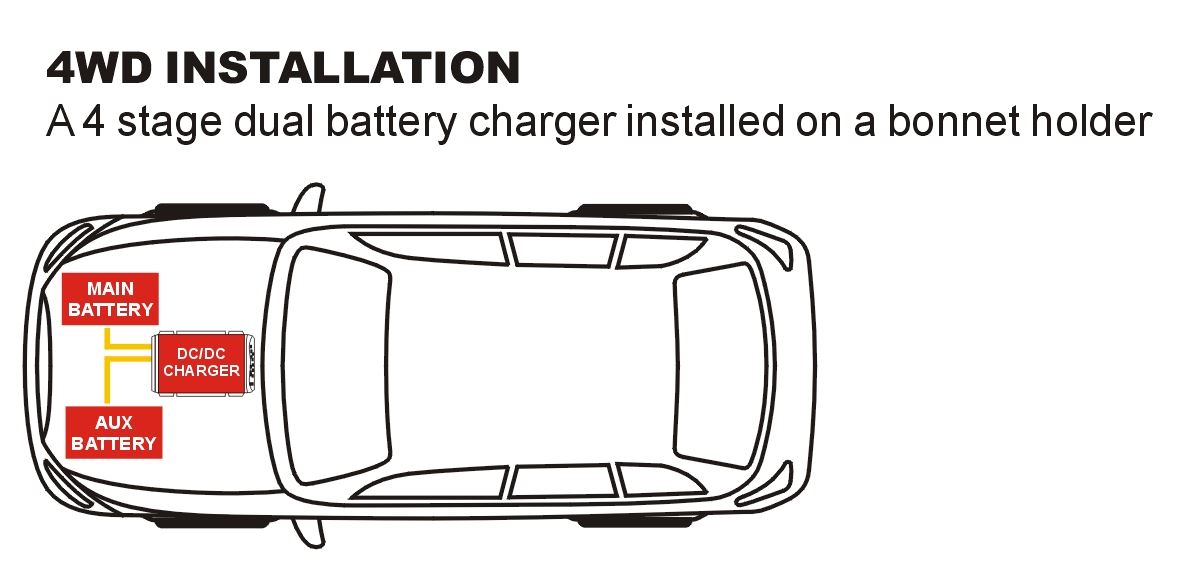

• 4WD INSTALLATION

• BATTERY TYPESELECTION

• Maximum Solar Input Voltage: 32Vdc

• Alternator Input Voltage: 9-32Vdc

• Solar Input Turn On Voltage:9V

• Maximum Input Current: 40A

• Output Current: 25A

• Maximum Output Power: 368W

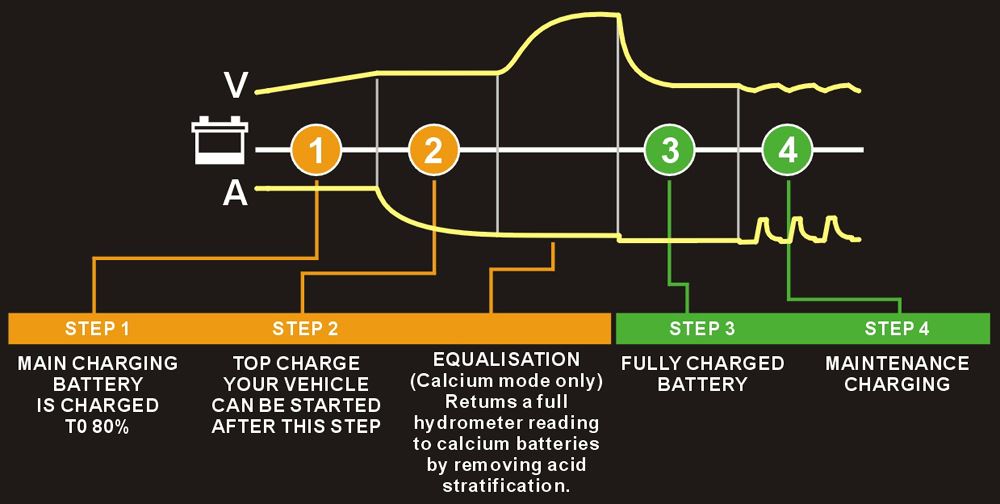

• Charger type: 4-step fully automatic charging

• Types of Batteries: All types of 12 V lead-acid batteries GEL , AGM ,WET, Calcium, and Lithium

• Deep Cycle: 75-300Ah

• IP Rating: IP67

• Dimension (L×W×H): 150×120×40mm

• Weight: 1kg

• Compliant standards: CE, EN 50498:2010

• Operating Model

Turn On/Off Thresholds

	12V Vehicle		24V Vehicle
VSR Model-Default(Ignition Override Not Connecte	Turn on 13.2V	Turn off 12.6V	Turn on 26.4V	Turn off 25.2V
Low Voltage Model- Ignition Override cable connected to ignition switch (Ignition on)	Turn on 12.2V	Turn off 11.6V	Turn on 24.4V	Turn off 23.3V
