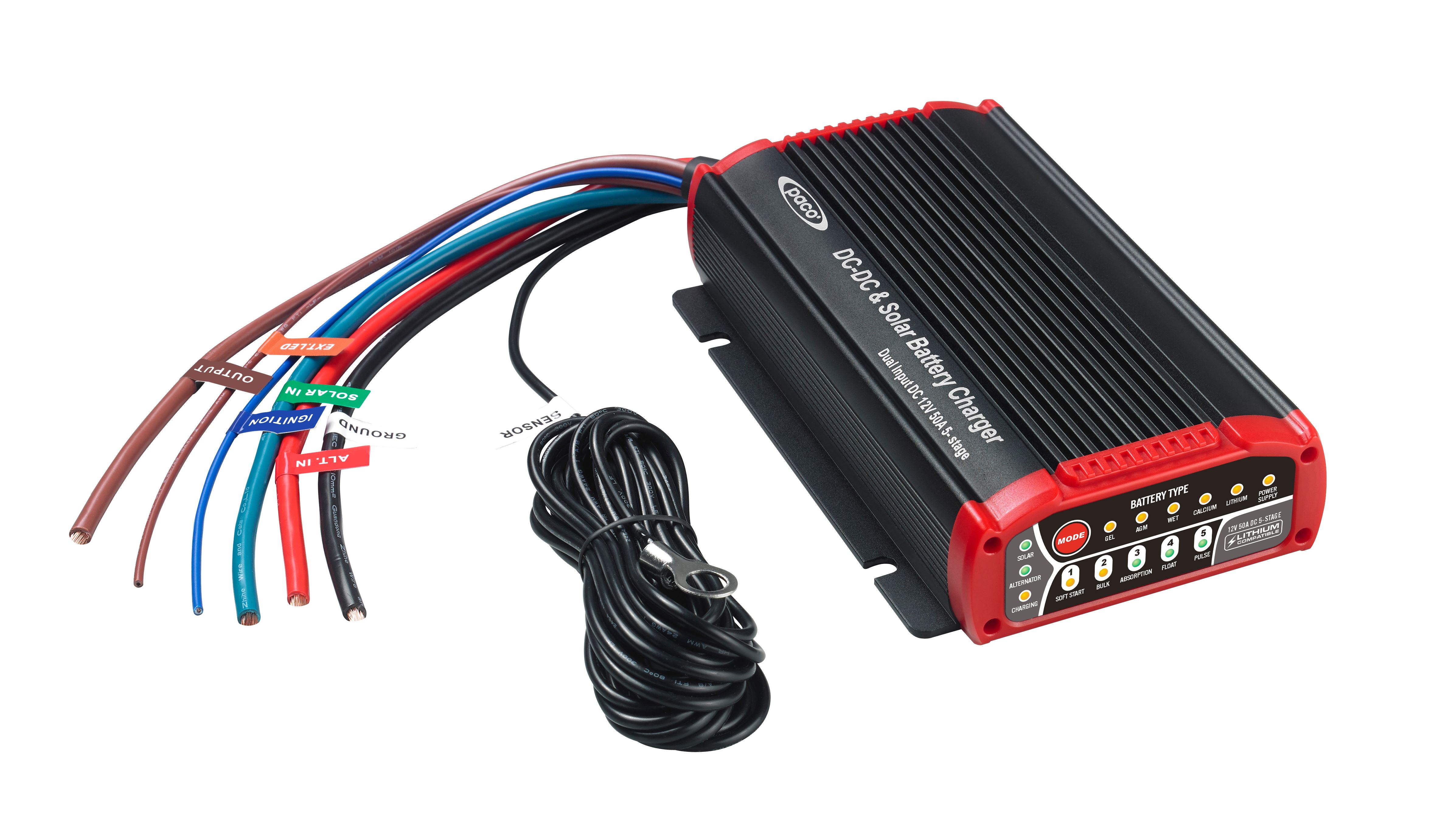

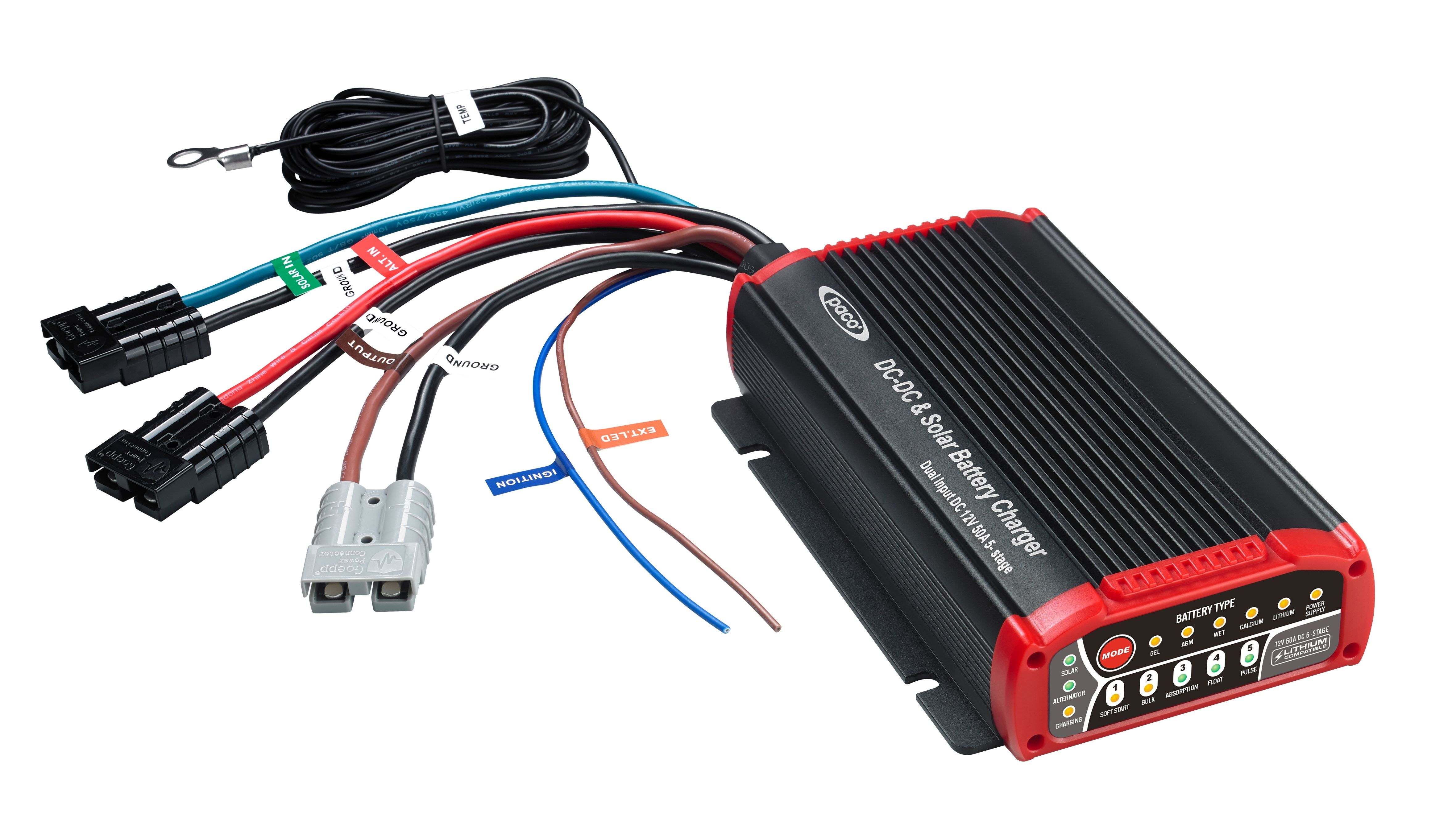

SVDC1225 / SVDC1225A
The SVDC1250 / SVDC1250A uses green power priority technology, which draws power from both the solar panel and the alternator. This means that the battery charger draw as much power as possible from the solar input and then supplements the deficiency from the alternator input until the maximum rated output is reached. The superior 5-stage charging process extends battery life and keeps batteries healthy and reliable. With our advanced and easy-to-use design, this charger is ideal for the 12V caravan, camping and 4WD.
• SOLAR MPPT
• 25A SOLAR MPPT CONTROLLER
• DUAL INPUT OPERATION
• VSR/SMART ALTERNATOR
• DUAL BATTERY MANAGER
• CARAVAN INSTALLATION

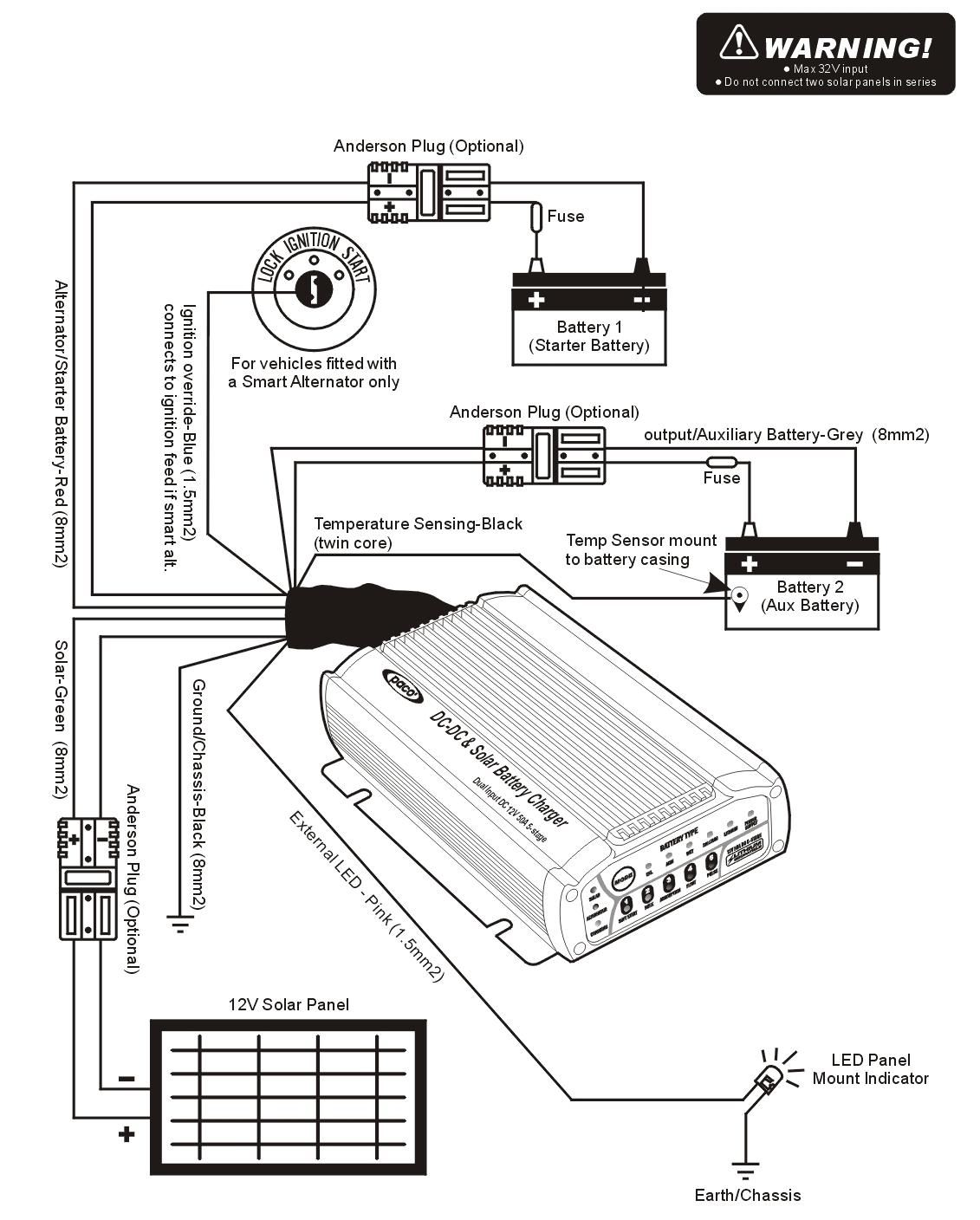

• 4WD INSTALLATION
• BATTERY TYPE SELECTION
• Solar Input Voltage Range: 9-32Vdc
• Alternator Input Voltage Range: 9-32Vdc
• Output Current: 25A
• Maximum Output Power: 375W
• Power Supply Output: 13.8Vdc, 25A

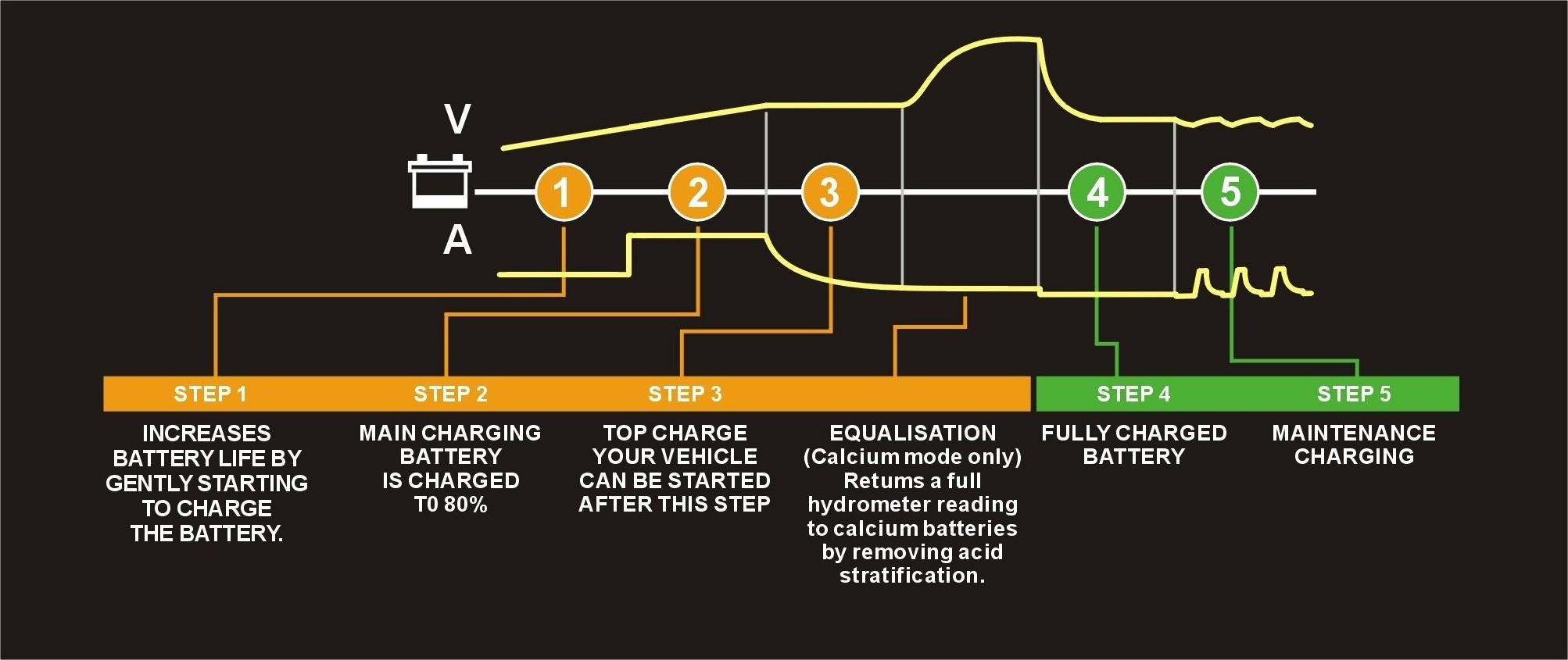

• Charger type: 5-step fully automatic charging
• Types of Batteries: All types of 12 V lead-acid batteries GEL , AGM ,WET, Calcium, and Lithium
• Deep Cycle: 75-300Ah (Lead-Acid) 50-250Ah(Lithium)
• IP Rating: IP67
• Dimension (L×W×H): 161×114×44mm
• Weight: 1.3kg
• Compliant standards: CE, EN 61000, EN 55014 Class B
• Operating Model
Turn On/Off Thresholds
| 12V Vehicle | 24V Vehicle | |||
|---|---|---|---|---|
| VSR Model-Default(Ignition Override Not Connected) | Turn on 13.2V | Turn off 12.8V | Turn on 26.4V | Turn off 25.2V |
| Low Voltage Model- Ignition Override cable connected to ignition switch (Ignition on) | Turn on 12.2V | Turn off 10.5V | Turn on 24.4V | Turn off 23.2V |
