ITEM NO: LBC 1215

• Switchmode technology: Yes

• Polarityprotection: Yes

• Output short protection: Yes

• Nonbattery link protection: Yes

• Over voltage protection: Yes

• Over temperature protection: Yes

• Disconnect protection:Yes

• Cooling fan: Automatictemperature controlled.

• Input voltage: 220-240V AC, 50/60Hz / 110V AC, 50/60Hz.

• Input power: 415W

• Rated output: 12V DC, 15A

• Back Drain: 4mA

• Minimum start voltage: 1.0V

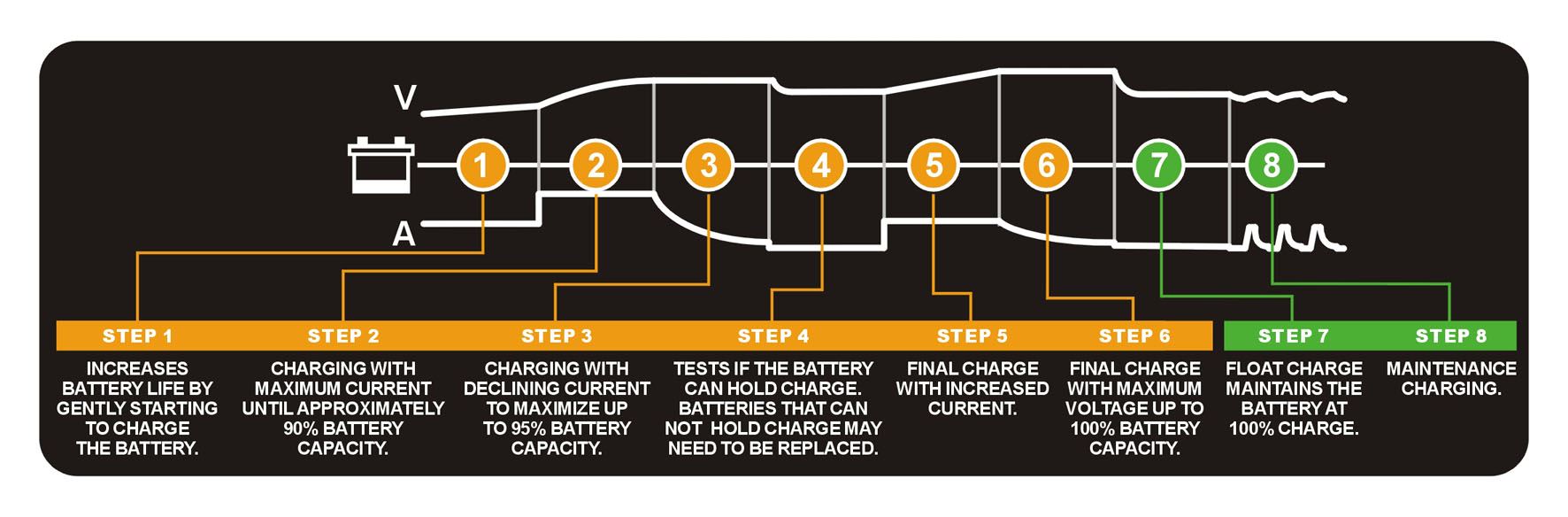

• The 8 stages are: Soft Start、Bulk、Absorption、Analyse 、Completion、Maximization、 Float And Maintain.

• Battery range: 30-150Ah

• Types of batteries: 12V Lithium-ion LiFePO4 batteries

• Thermal protect (fan on): 65℃+/-5℃.

• Cooling fan: Automatic temperaturecontrolled.

• Efficiency: App. 85%.

• Compliant standards: CB,CE, IEC60335, EN61000,EN55014

• Dimension (L×W×H): 217×116×62mm

• Weight: 1.28kg
