LBC1220
LBC 1220 provides efficient and rapid chargingprocess,ideal for minivans, recreational vehicles and boats battery charging.
ITEM NO:LBC 1220
• Switchmode technology: Yes
• Polarityprotection: Yes
• Output short protection: Yes
• Nonbattery link protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Disconnect protection: Yes
• Cooling fan: Automatictemperature controlled.
• Input voltage: 220-240V AC, 50/60Hz / 110V AC,50/60Hz.
• Input power: 554W
• Rated output: 12V DC, 20A
• Types of batteries: 12V Lithium-ion LiFePO4 batteries
• Back Drain: 4mA
• Minimum start voltage: 1.0V

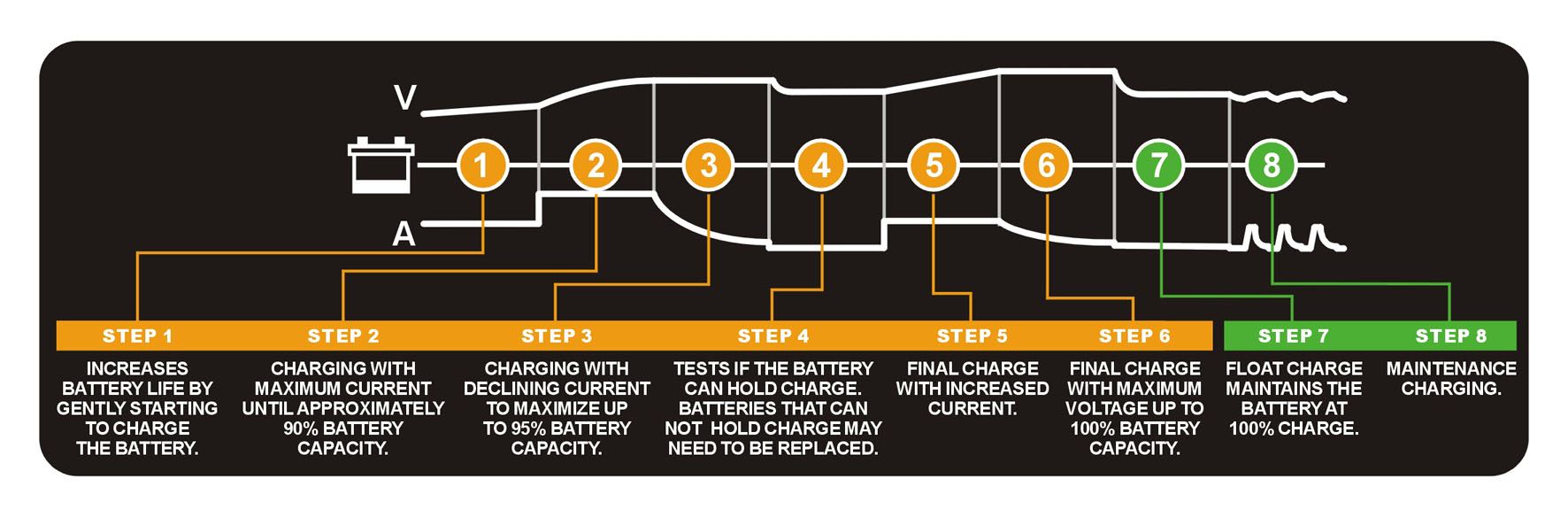

• The 8 stages are: Soft Start、Bulk、Absorption、Analyse 、Completion、Maximization、 Float And Maintain.
• Battery range: 40-200Ah
• Thermal protect (fan on): 65℃+/-5℃.
• Cooling fan: Automatic temperaturecontrolled.
• Efficiency: App. 85%.
• Compliant standards: CB,CE, IEC60335, EN61000,EN55014
• Dimension (L×W×H): 217×116×62mm
• Weight: 1.28kg
