ITEM NO:MFC 2413L

• Microprocessor Control (CPU)

• This is a fully Power Factor Correction (PFC) automatic battery charger with 8 charge stages.

• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.

• 8-stage charging is a very comprehensive and accurate charging process that gives your battery longer life and better performance compared to using traditional chargers.

8-stage chargers are suitable for mostbattery types including LITHIUM,GEL, AGM, WET, MF and CALCIUM batteries. They may also help restore drained andsulphated batteries.

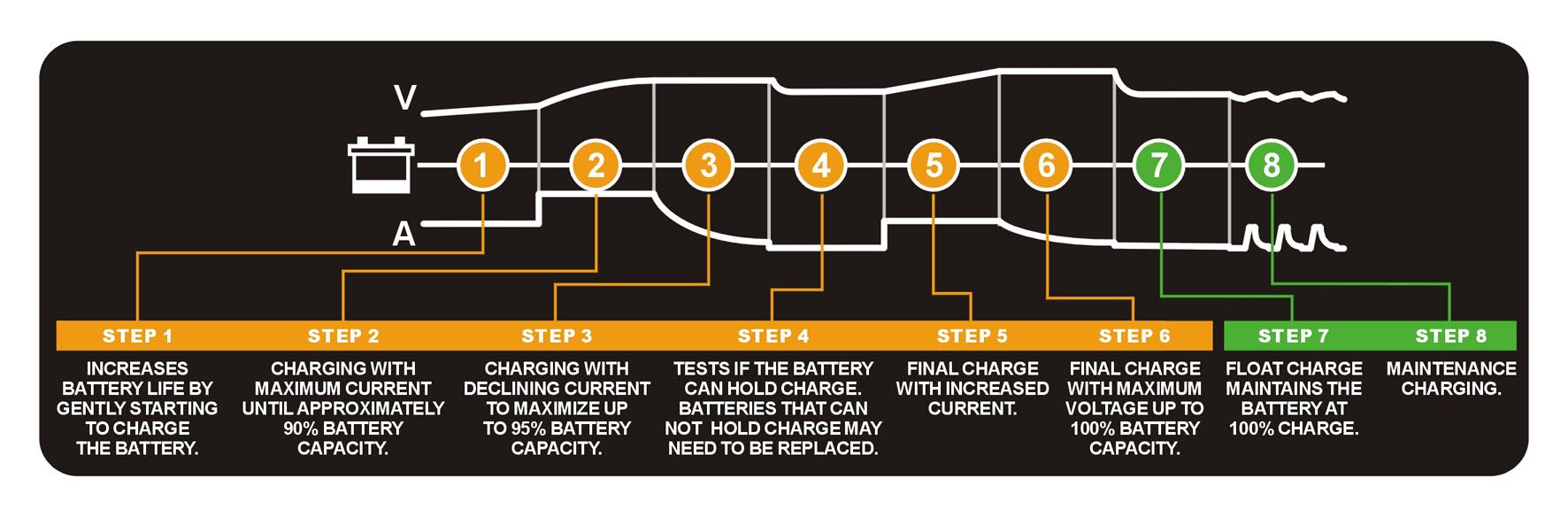

• The Lithium battery mode 8 stages are: Soft Start、Bulk、Absorption、Analyse、Completion、Maximization、Float and Maintain.

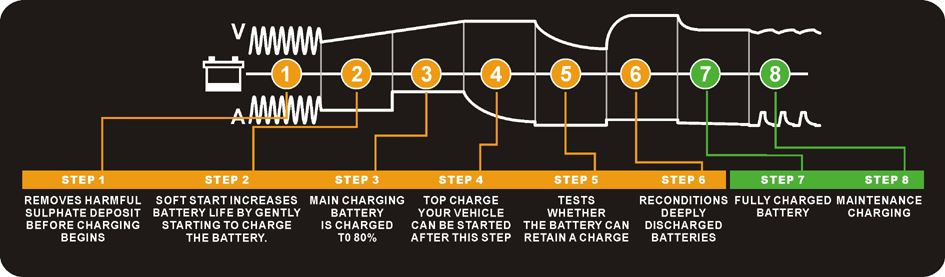

• The Lead Acid battery mode 8 stages are: Desulphation、Soft Start、Bulk、Absorption、Analyse、Recondition、Float and Pulse.

• Switchmode technology: Yes

• Polarity protection: Yes

• Output short protection:Yes

• On battery link protection: Yes

• Over voltage protection: Yes

• Over temperature protection: Yes

• Disconnect protection: Yes

• Cooling fan: Automatic temperature controlled

• Input voltage: 220-240VAC, 50/60Hz / 110V AC, 50/60Hz

• Input power: 433W

• Rated output: 24V DC, 13A

• Supply Mode: 27.6V DC,13A

• Back Drain: 1.5mA

• Minimum start voltage: Lead Acid: 4.0V  Lithium: 2.0V

• Lithium Battery Range: 26-130Ah

• Lead-acid Battery Range: 86-260Ah

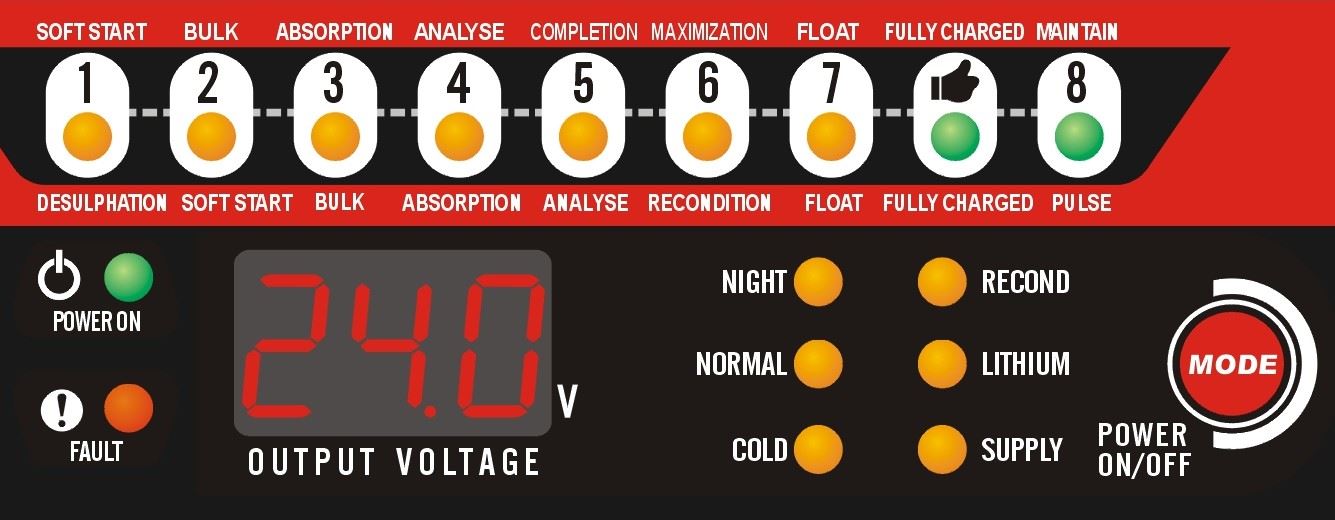

• Charging model:  NIGHT, NORMAL, COLD,RECOND, LITHUIM, SUPPLY MODE

• Thermal protect (fan on): 65℃+/-5℃

• Cooling fan: Automatic temperature controlled

• Efficiency: App. 85%

• Compliant standards: CB, CE,IEC60335, EN61000, EN55014

• Dimension (L×W×H): 217×116×62mm

• Weight: 1.32kg
