MFC 1235L
MFC 1235L provides a comprehensive permanently fixed charge. Ideal for large batteries found in boats, camper trailers and caravans.
ITEM NO:MFC 1235L
• Microprocessor Control (CPU)
• This is a fully Power Factor Correction (PFC) automatic battery charger with 8 charge stages.
• Automatic charging protects your battery from being overcharged. So you can leave the charger connected to the battery indefinitely.
• 8-stage charging is a very comprehensive and accurate charging process that gives your battery longer life and better performance compared to using traditional chargers.
• 8-stage chargers are suitable for most battery types including LITHIUM, GEL, AGM, WET, MF and CALCIUM batteries. They may also help restore drained and sulphated batteries.

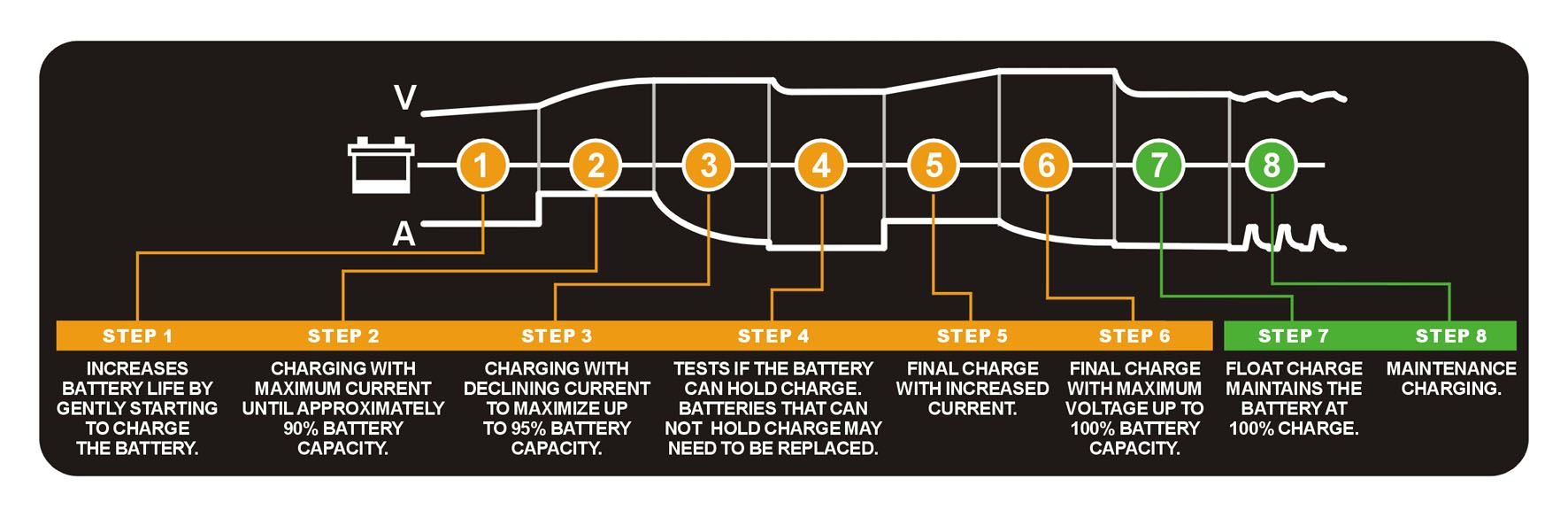

• The Lithium battery mode 8 stages are: Soft Start、Bulk、Absorption、Analyse、Completion、Maximization、Float and Maintain.

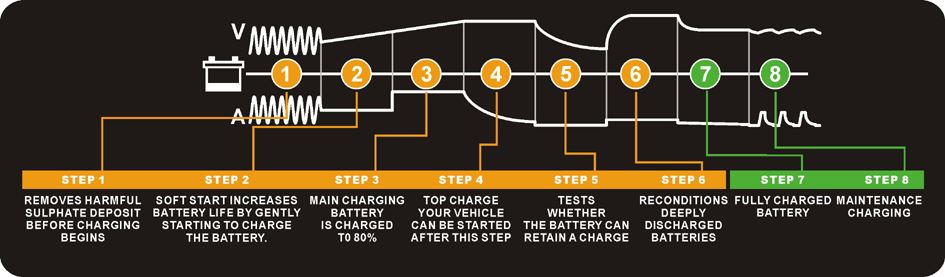

• The Lead Acid battery mode 8 stages are: Desulphation、Soft Start、Bulk、Absorption、Analyse、Recondition、Float and Pulse.
• Switchmode technology: Yes
• Polarity protection: Yes
• Output short protection:Yes
• On battery link protection: Yes
• Over voltage protection: Yes
• Over temperature protection: Yes
• Disconnect protection: Yes
• Cooling fan: Automatic temperature controlled
• Input voltage: 220-240VAC, 50/60Hz / 110V AC, 50/60Hz
• Input power: 598W
• Rated output: 12V DC, 35A
• Power supply: 13.8V DC,35A
• Back Drain: 1.5mA
• Minimum start voltage: Lead Acid: 2.0V Lithium: 1.0V
• Lithium Battery Range: 70-350Ah
• Lead-acid Battery Range: 240-700Ah

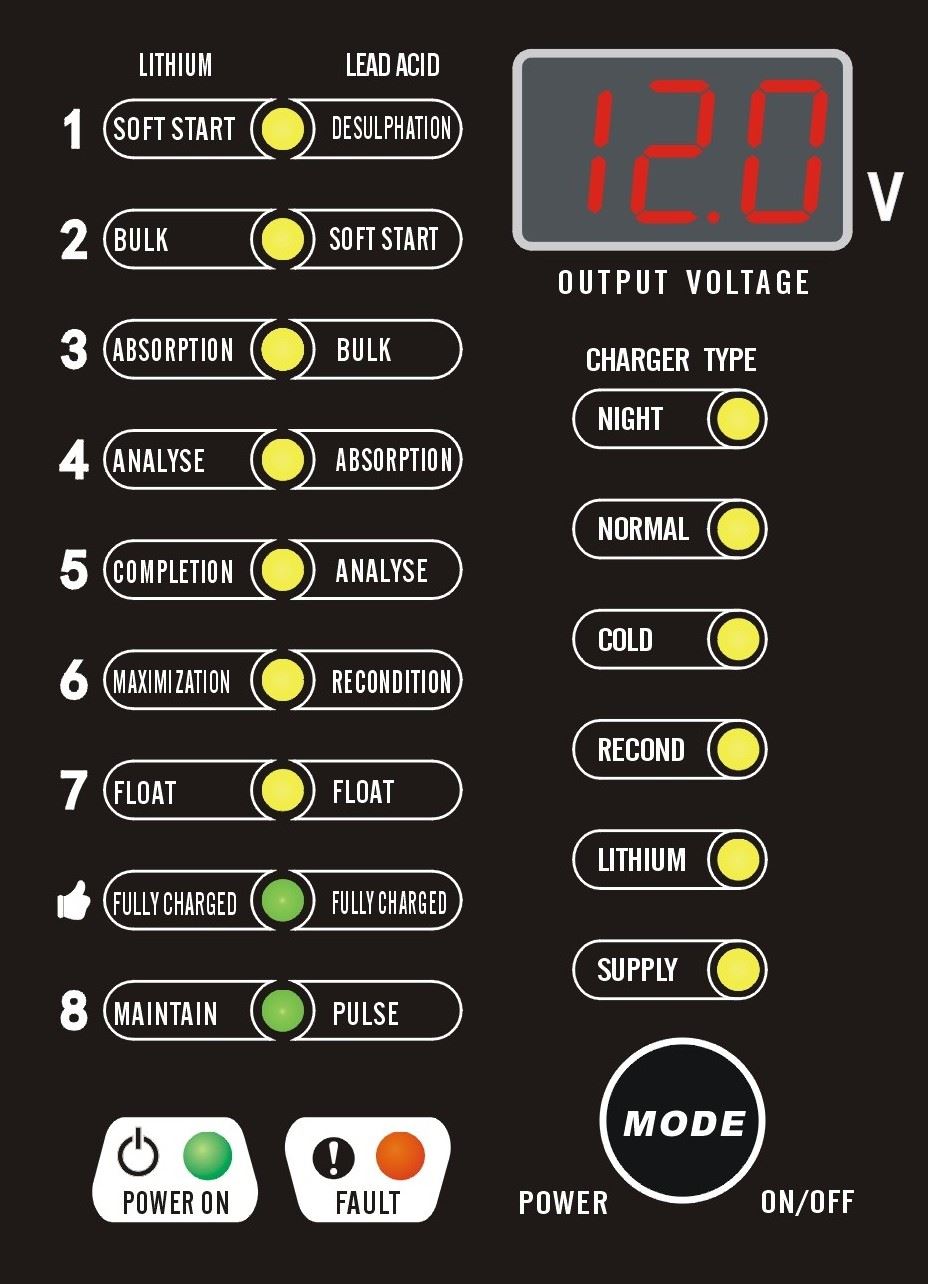

• Charging model: NIGHT, NORMAL, COLD, RECOND, LITHUIM, POWER SUPPLY
• Thermal protect (fan on): 65℃+/-5℃
• Cooling fan: Automatic temperature controlled
• Efficiency: App. 85%.
• Compliant standards: CB, CE,IEC60335, EN61000, EN55014
• Dimension (L×W×H): 250×142×58mm
• Weight: 1.67kg
