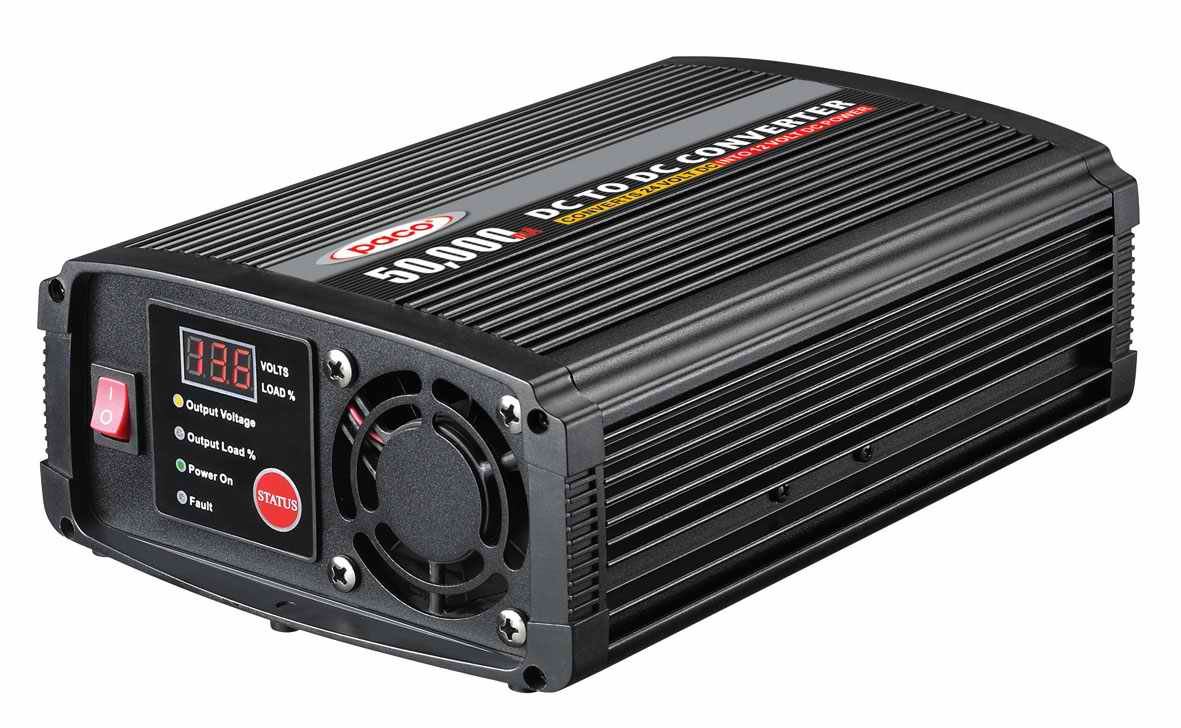

ITEM NO:  PV2412-100

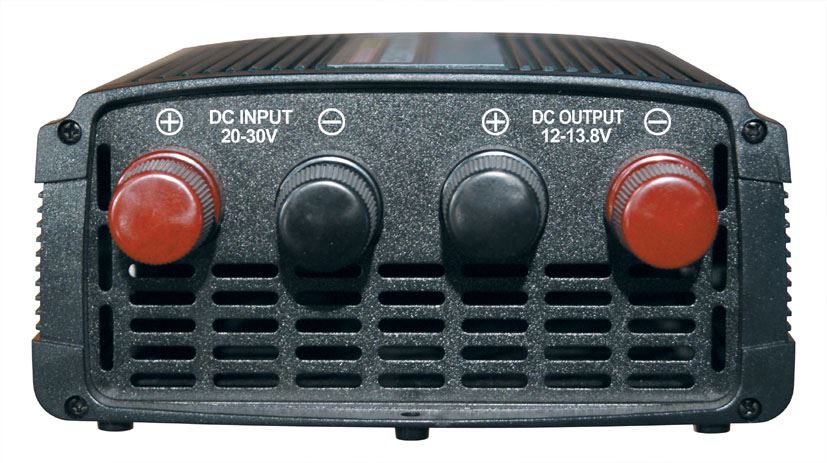

• Input voltage: 20V DC to 30V DC
• Output voltage: 12V DC to 13.8V DC
• Standby current: ≤110mA
• Output power: 100A (continuous), 130A (maximum)
• Input fuse: 4×25A, Standard auto blade fuse (Internal)
• Connection cable: 20mm2/900mm
• Efficiency: 85% to 90%
• Thermal shutdown: 65℃+/-5℃

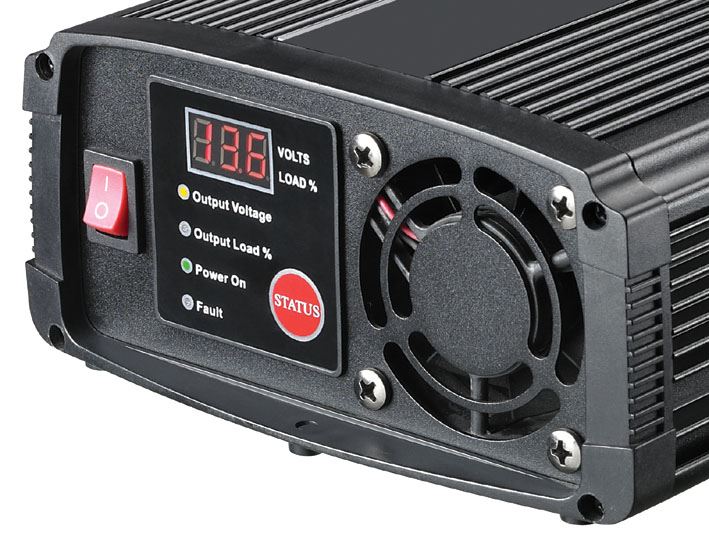

• Cooling fan: Yes auto-operation fan (temperature or load)
• Input polarity reverse diode protection
• Output polarity reverse circuit protection
• Output short-circuit protection
• Overheating circuit protection
• Overload circuit protection.
• Operating temperature: 0~40℃
• Storage temperature:: -15℃~45℃
• Operating relative humidity: 10%RH~102%RH,
• Compliant standards: CE, EN61000, 2006/28/EC.
• Dimension: 365×165×79mm
• Net weight: 3.03kg
